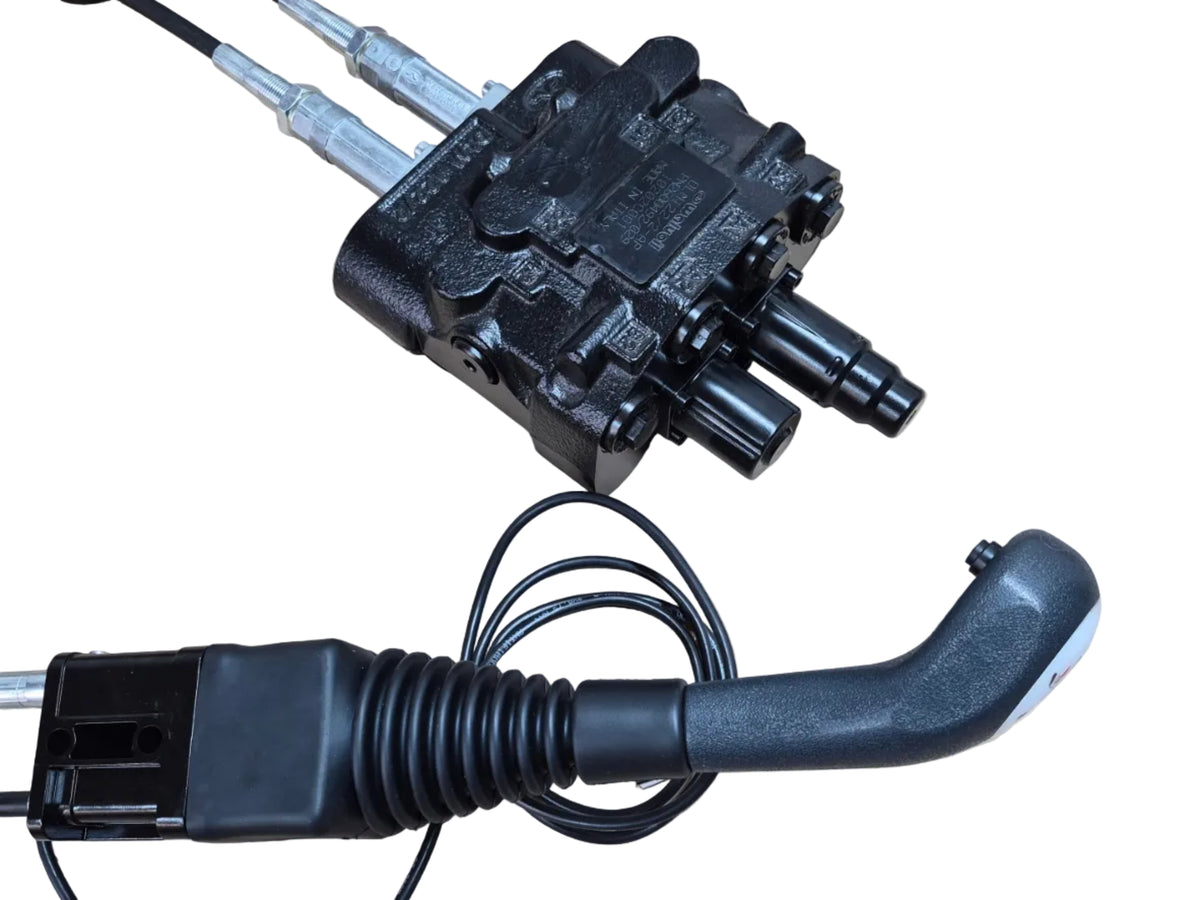

Professional front loader monoblock single lever / joystick control device

Offered here are professional AKON / Walvoil front loader control valves including Bowden cable and lever with optional buttons.

These control valves are a professional solution.
Both sections are double-acting, and one section also has a detented float position. Hardened and coated spools ensure long service life and wear resistance.

Depending on the version selected, we supply a control valve from Walvoil or AKON:

• Constant flow system: AKON LVM92 - OC
• Constant pressure system: AKON LVM92 - CC
• Load sensing system: Walvoil DLM122/2

An adjustable pressure relief valve is also built into the block.

Technical data AKON LVM92

• Max. flow rate: 90 l/min
• Max. pressure: 250 bar
• Max. return pressure: 10 bar
• Connections: P, A, B, N = 1/2" BSP; T=3/4" BSP
• Oil temperature range:-15 to 80°C
• incl. adjustable pressure relief valve
• incl. pressure carry-over

Technical data Walvoil DLM122/2

• Rated flow rate: 80 l/min
• Max. pressure: 250 bar
• Max. return pressure: 10 bar
• Connections: N, A, B= 1/2" BSP; P, T=3/4" BSP; LS= 1/4" BSP
• Oil temperature range:-20 to 80°C
• without pressure relief valve (not required)

The position and size of the working ports is identical on both valves, so the same coupling fits in both cases.
