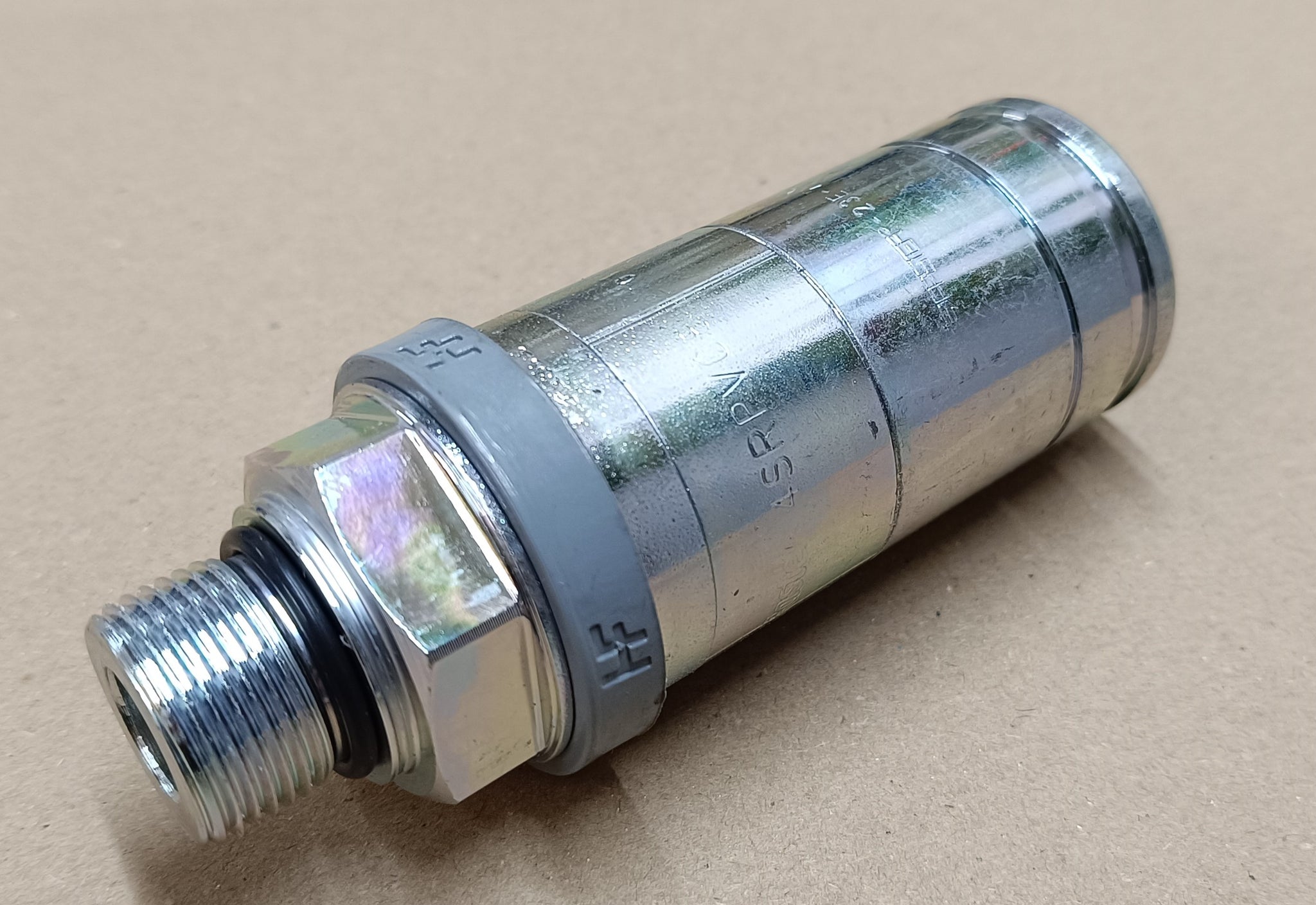

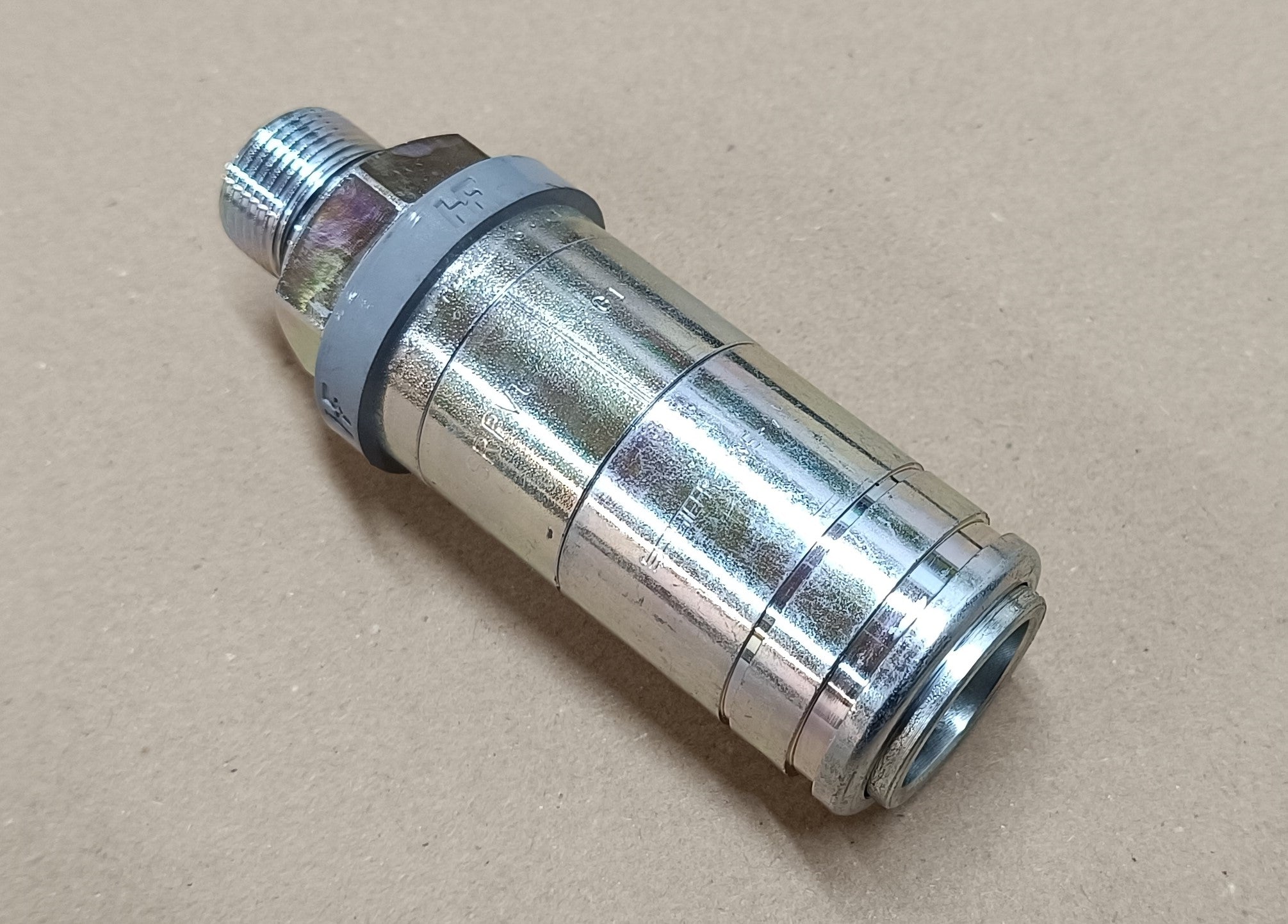

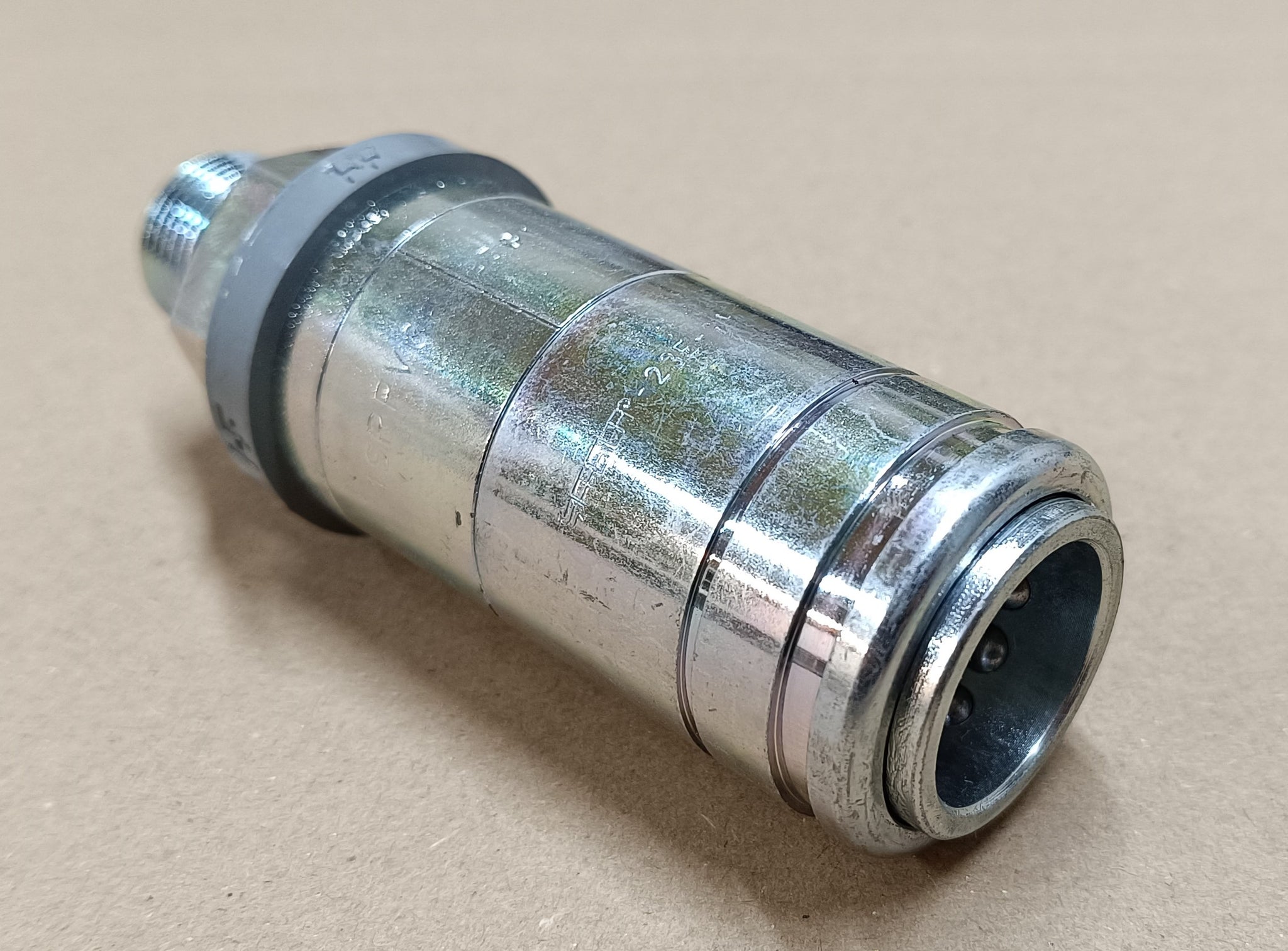

FASTER quick coupling 4SRPV up to 250 l/min BG3 socket
New original FASTER quick couplings are offered here.
This is the high-flow version with a permissible volume flow of up to 250 l/min.
They were used on various tractors from Fendt, John Deere and other manufacturers.
They fit almost all original valves from Bosch, Bucher, Danfoss and comparable sandwich valve blocks.
Comparison numbers (not complete):
John Deere:
AL237055
AL221083
Fendt comparison numbers:
G842960140102
FASTER:
4SRPV081/22FVAC
Connection thread A: M22 x 1.5
Nominal flow rate (l/min): 68 (permissible flow rate up to 250 l/min)
Max. operating pressure (bar): 250
Connection thread: M22 x 1.5
Series: 4SRPV
Material: steel, galvanized, MATE 500 (CrIII)
Function: Tear-off function, push-pull function
Plug and socket can be coupled under residual pressure.
