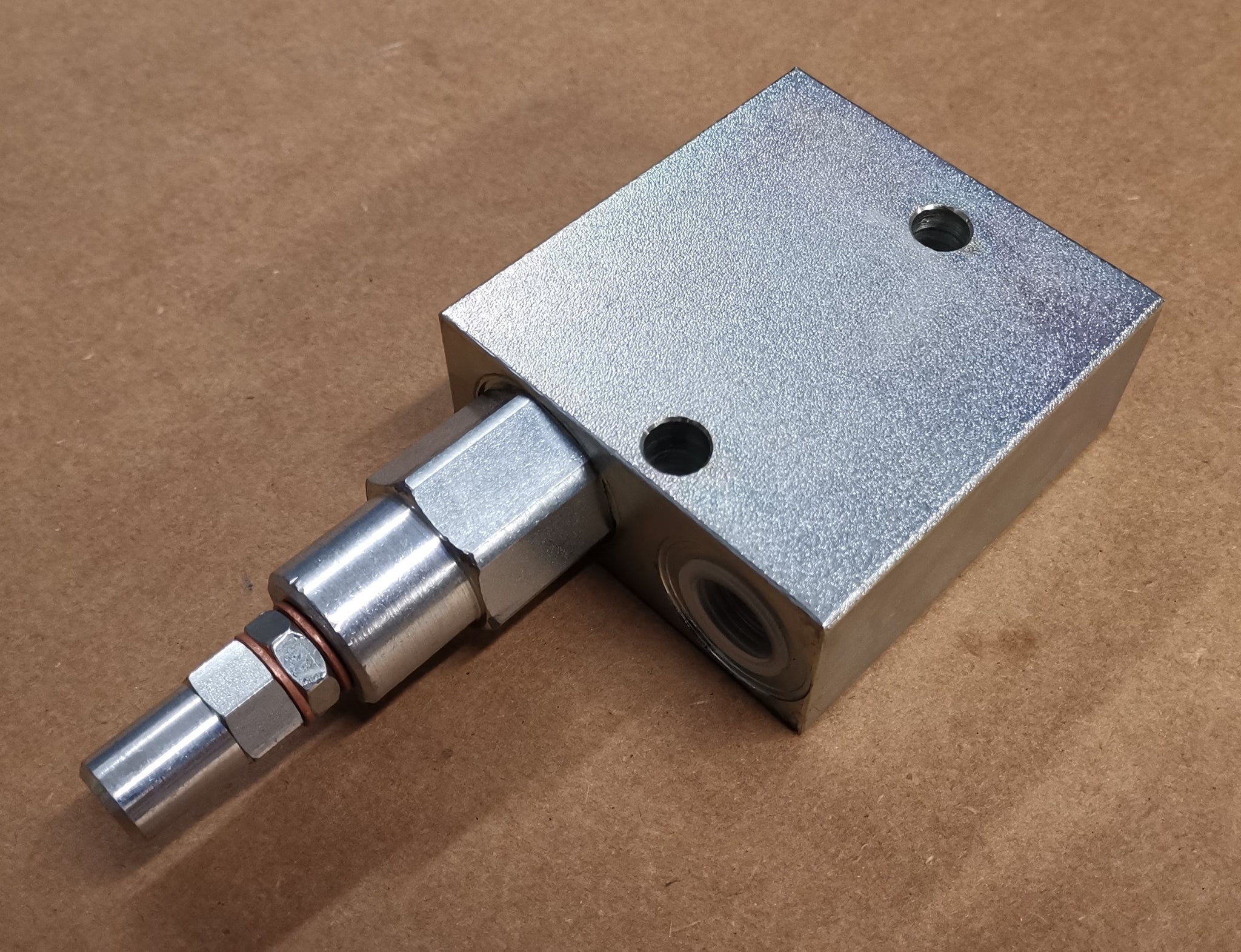

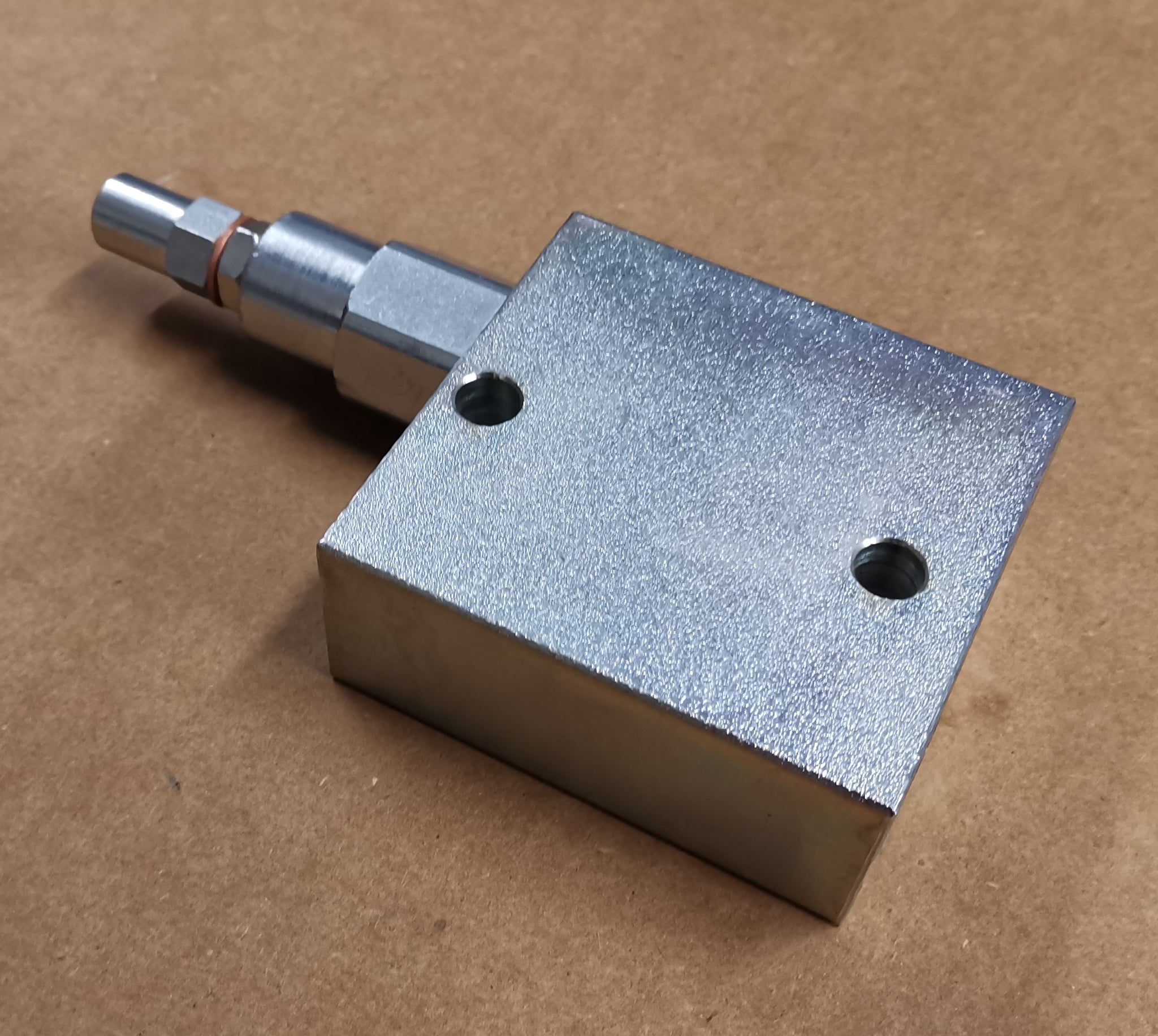

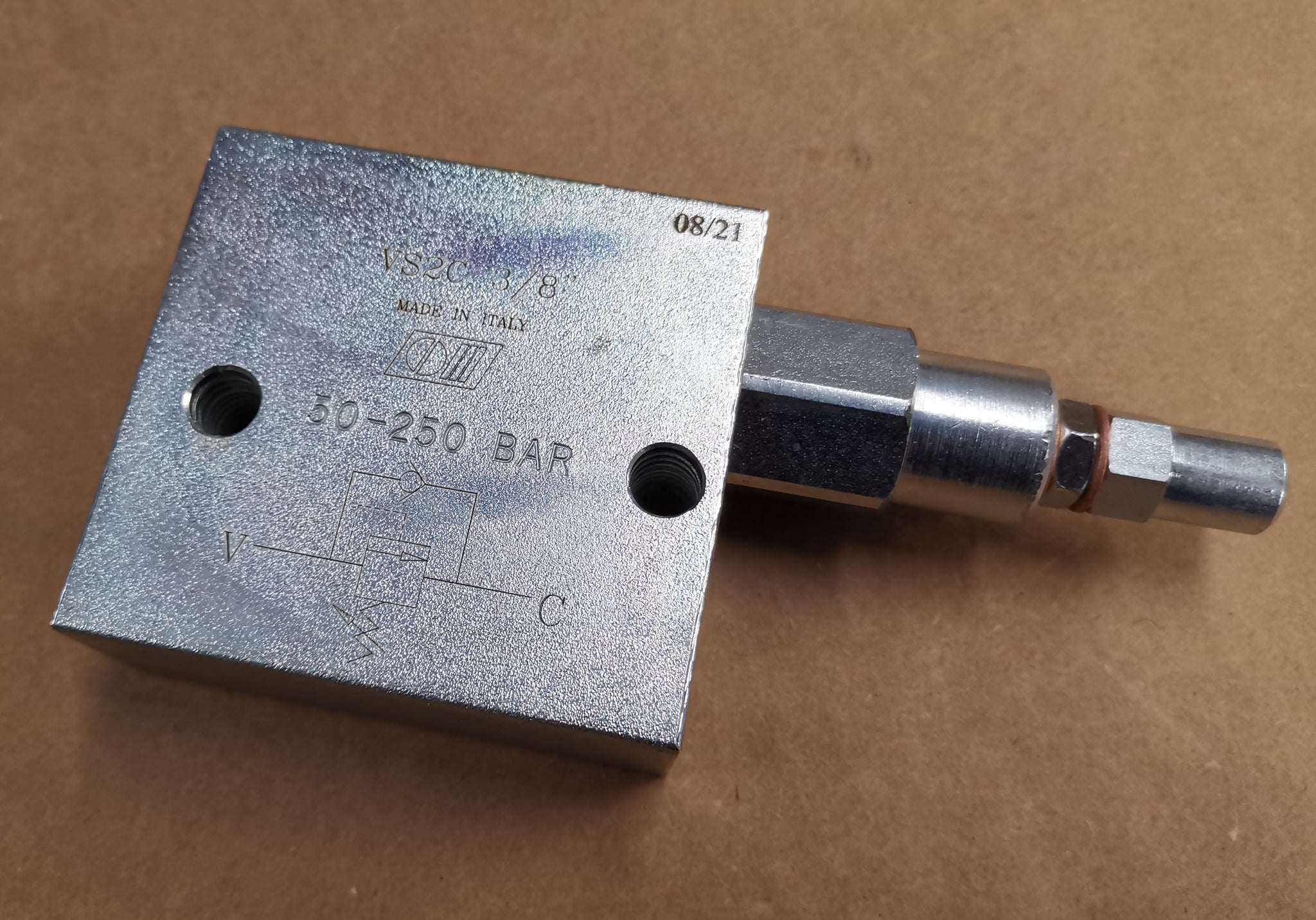

Pressure sequence valve 3/8" 50-250 bar
Pressure sequence valve 3/8" 50-250 bar
Pressure sequence valve 3/8" 50-250 bar
Pressure sequence valve 3/8" 50-250 bar

Pressure sequence valve 3/8" 50-250 bar

Fluidpress

Tax included. Shipping calculated at checkout.
New pressure sequence valves are offered here.
When the set pressure is reached, they open the passage.

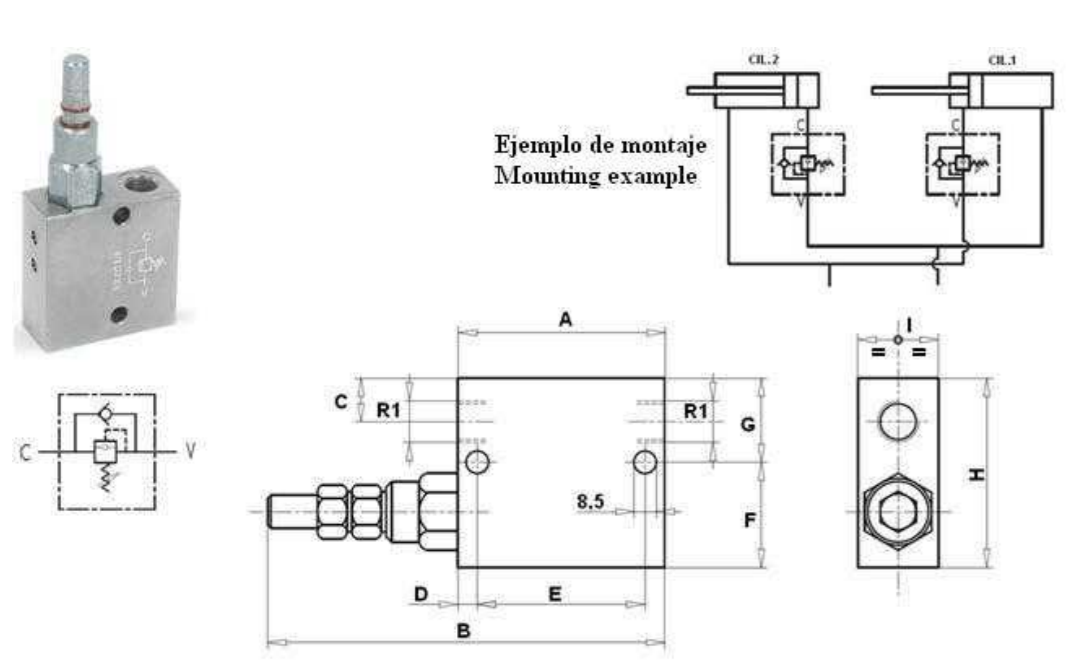

This allows, for example, cylinders to be extended one after the other.

An integrated check valve allows the volume flow to flow freely back.

Technical data:
- adjustable pressure: 50-250 bar
- Preset pressure: approx. 130 bar
- max. volume flow: 35 l/min
- max. pressure: 350 bar
- Connection thread: 3/8" BSP
