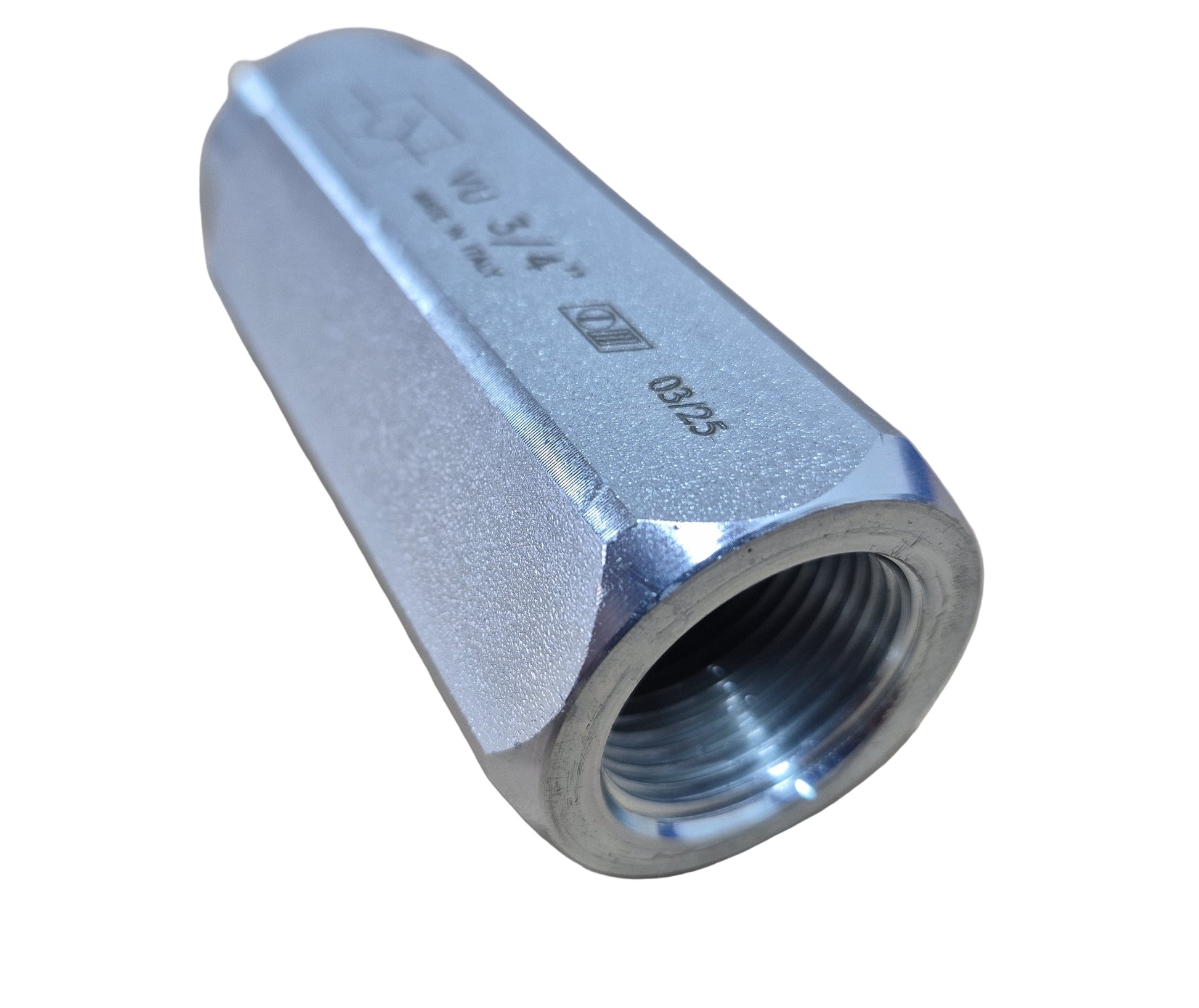

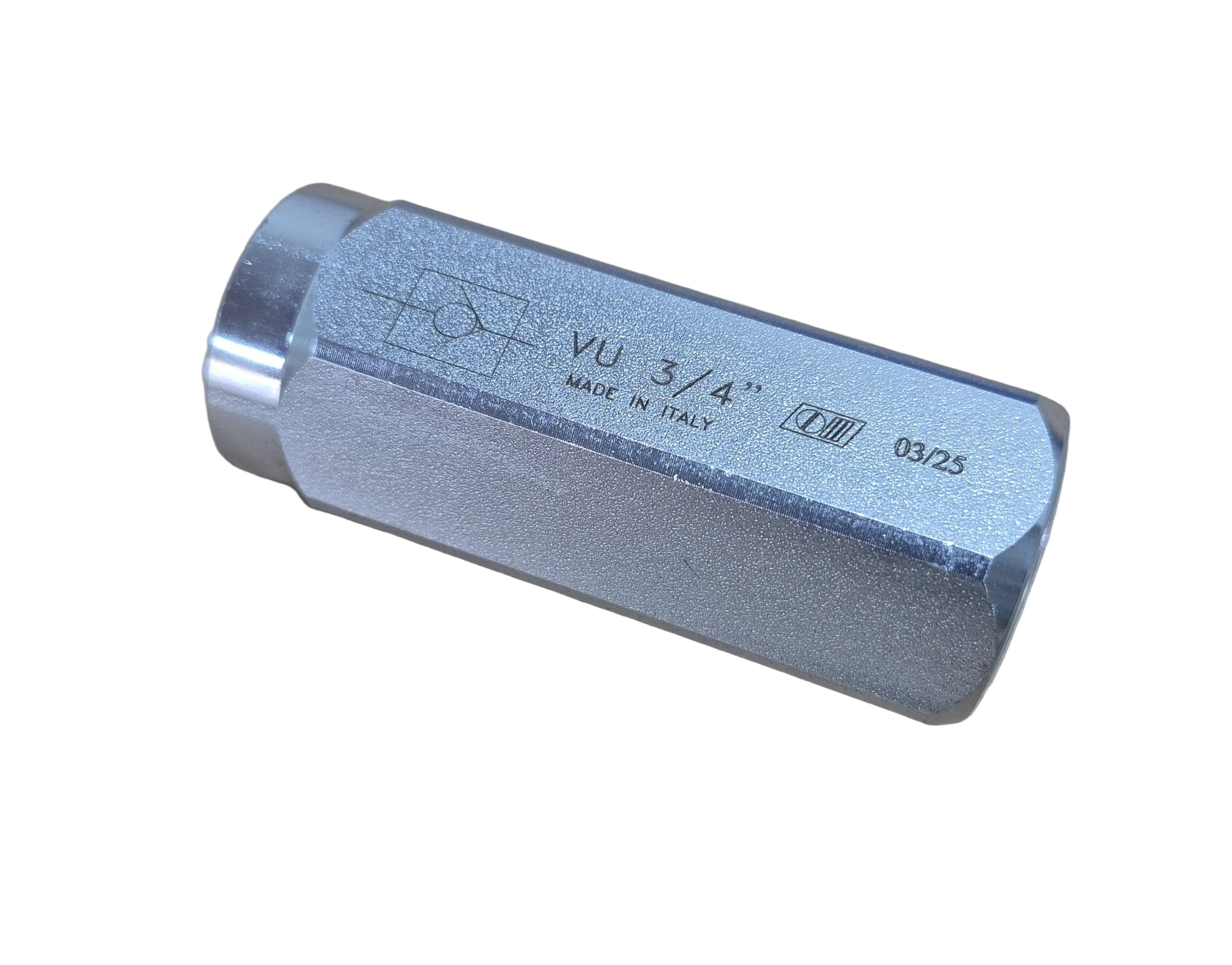

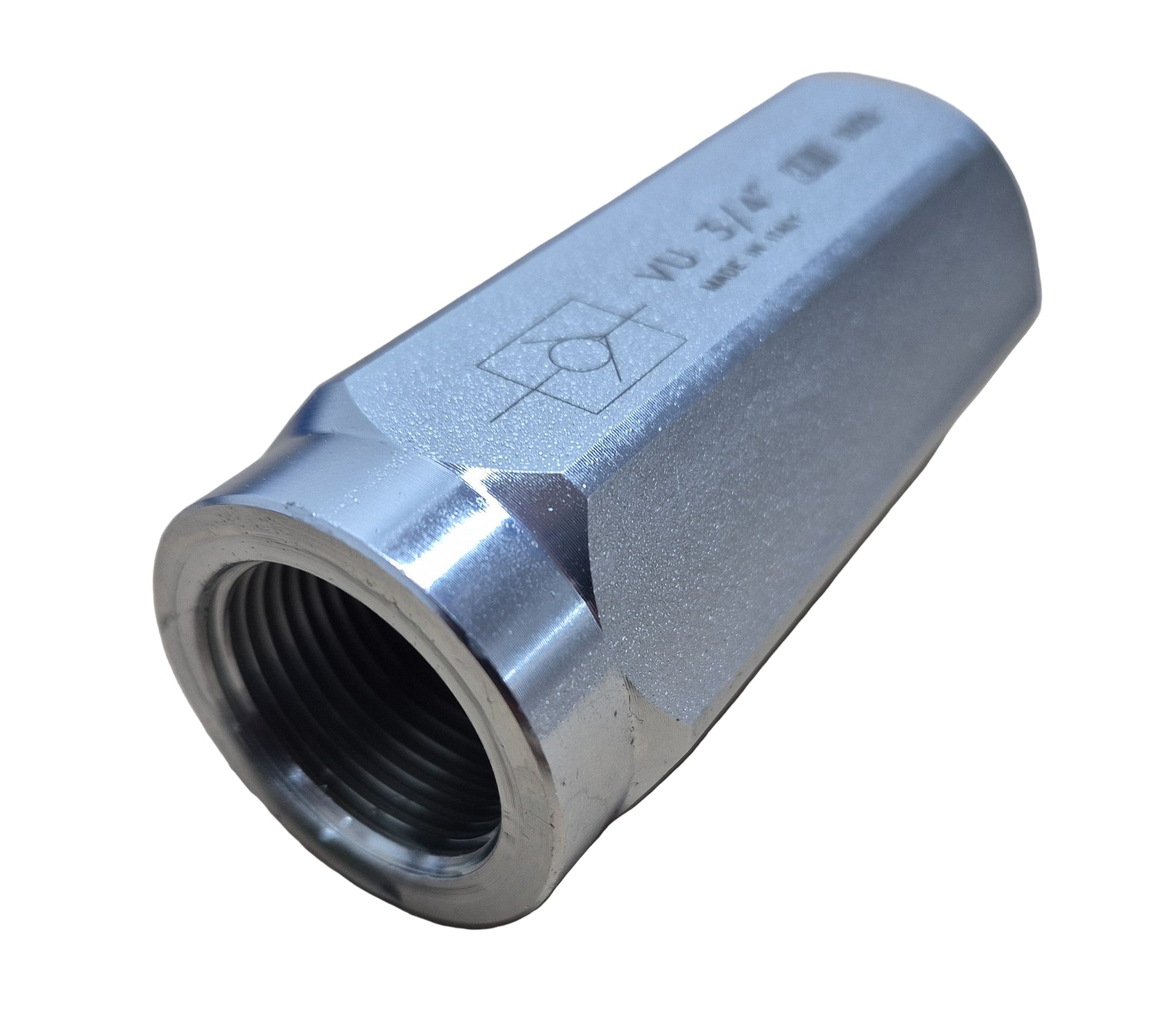

Double unlockable check valve (blocking block) with pipe connection

Double unlockable check valve (blocking block) with pipe connection

Check valves for various applications are offered here. The direction of flow is printed on the valve.

Technical data:

  • max. pressure: 350 bar
  • Nominal flow rate:
    • 1/4" BSP: approx. 20 l/min
    • 3/8" BSP: approx. 45 l/min
    • 1/2" BSP: approx. 70 l/min
    • 3/4" BSP: approx. 110 l/min
    • 1" BSP: approx. 160 l/min
  • Opening pressure: 0.4 - 0.7 bar
  • Max. operating pressure: 350 bar
  • Material: galvanized steel 11SMnPb30
Größe des Rückschlagventils

VU14

10 in stock

€10,99 EUR
€10,99 EUR
Sale Sold out
Taxes included. Shipping calculated at checkout.
