Push-pull couplings BG3 holder 4+1
Push-pull couplings BG3 holder 4+1

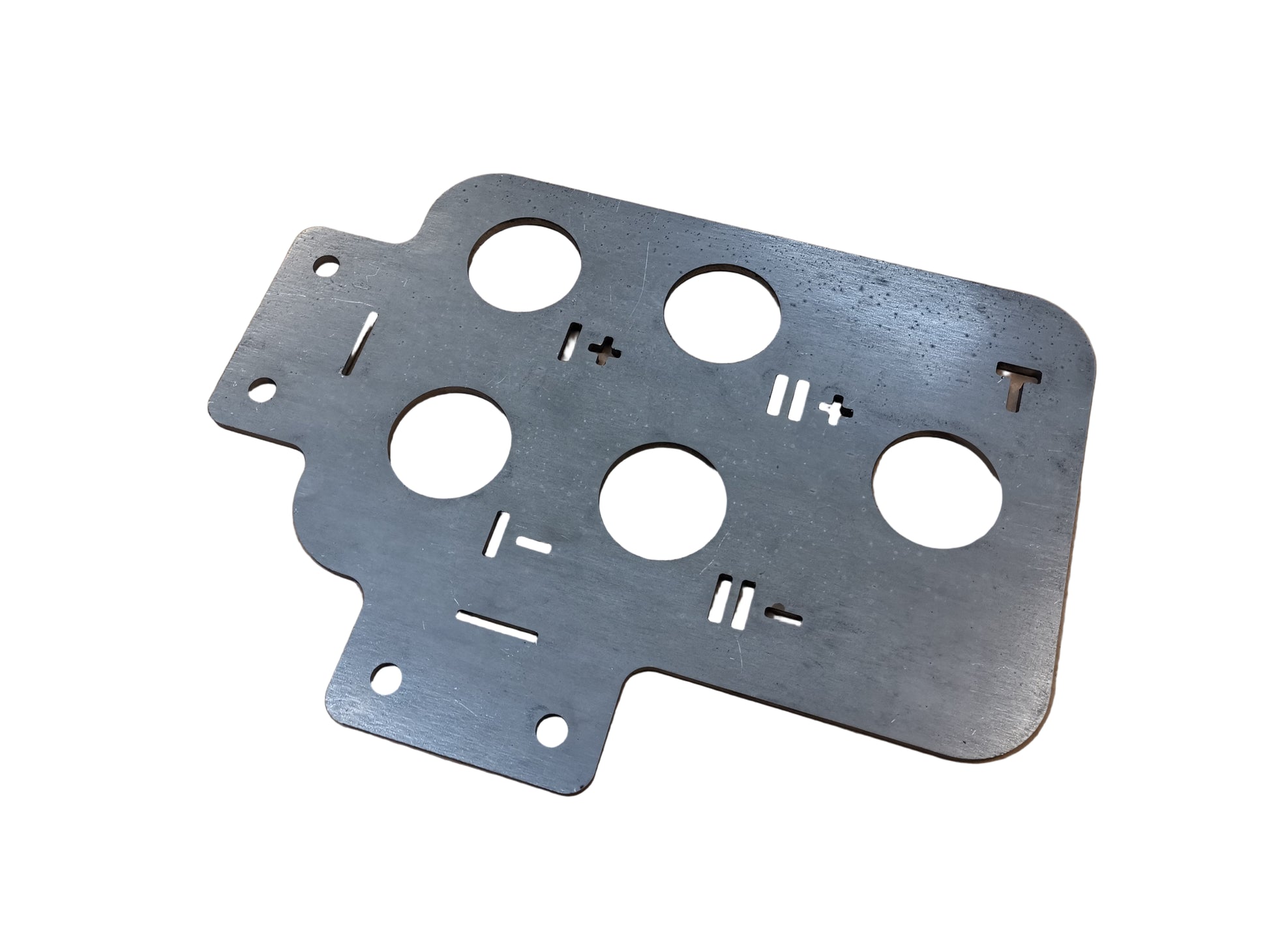

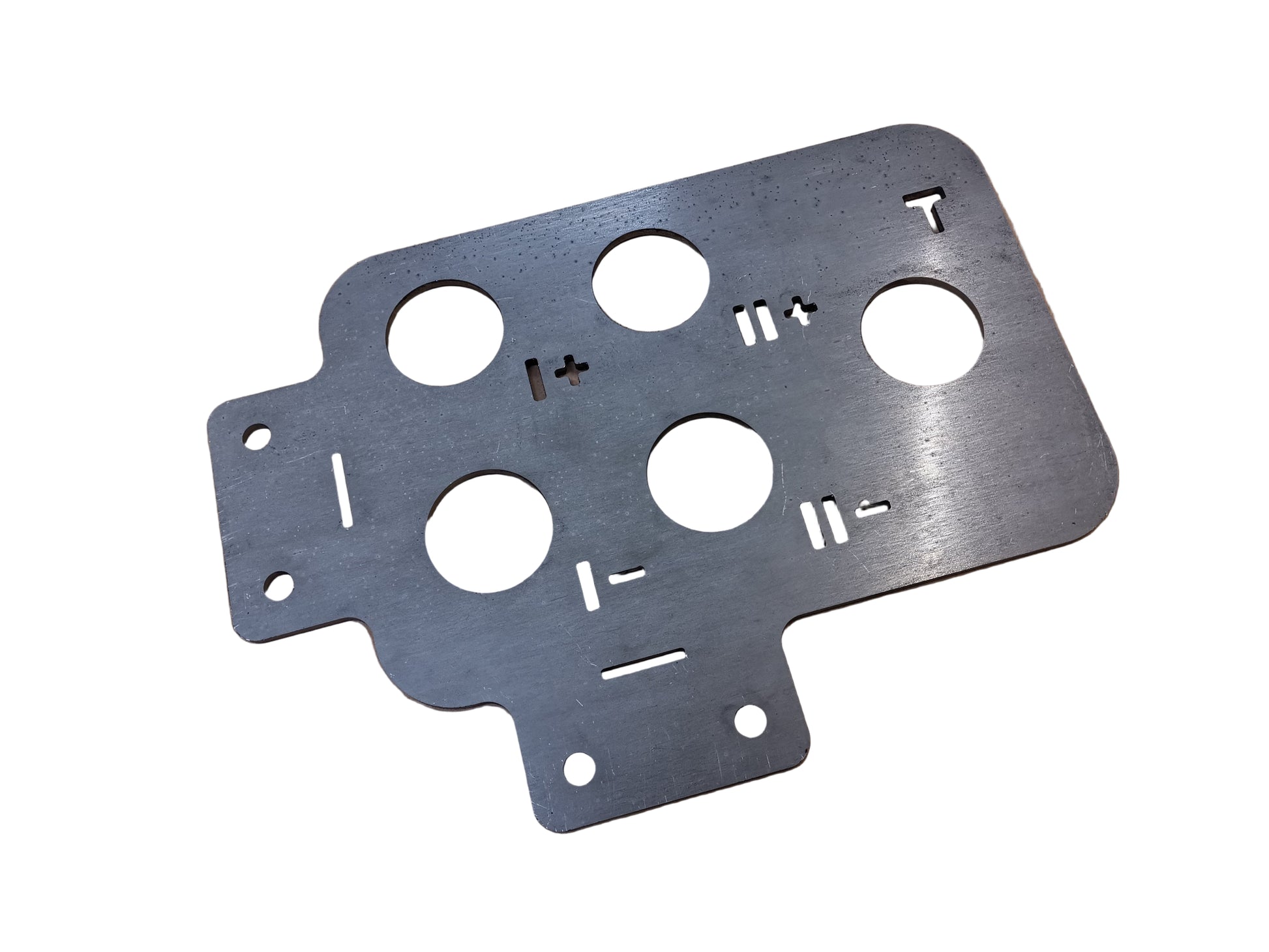

Base plates are offered here for two double-acting control valves with an additional unrestricted return, or up to four single-acting control valves with an additional unrestricted return.
This base plate enables correct use of the push/pull function of the plug-in couplings. To do this, the plug-in couplings are mounted on the sheet metal with retaining rings so they can rotate freely.
The plugs can now only be inserted into the sleeves by pulling or pushing.
A breakaway function is also ensured.
The base plate can be mounted in various positions and, thanks to the relief slots, bent in a vise to a reasonable standard.
Unneeded mounting points can then be cut off.
Technical specifications:
- S235 steel sheet
- 4mm material thickness
- Laser cut (with oxygen)

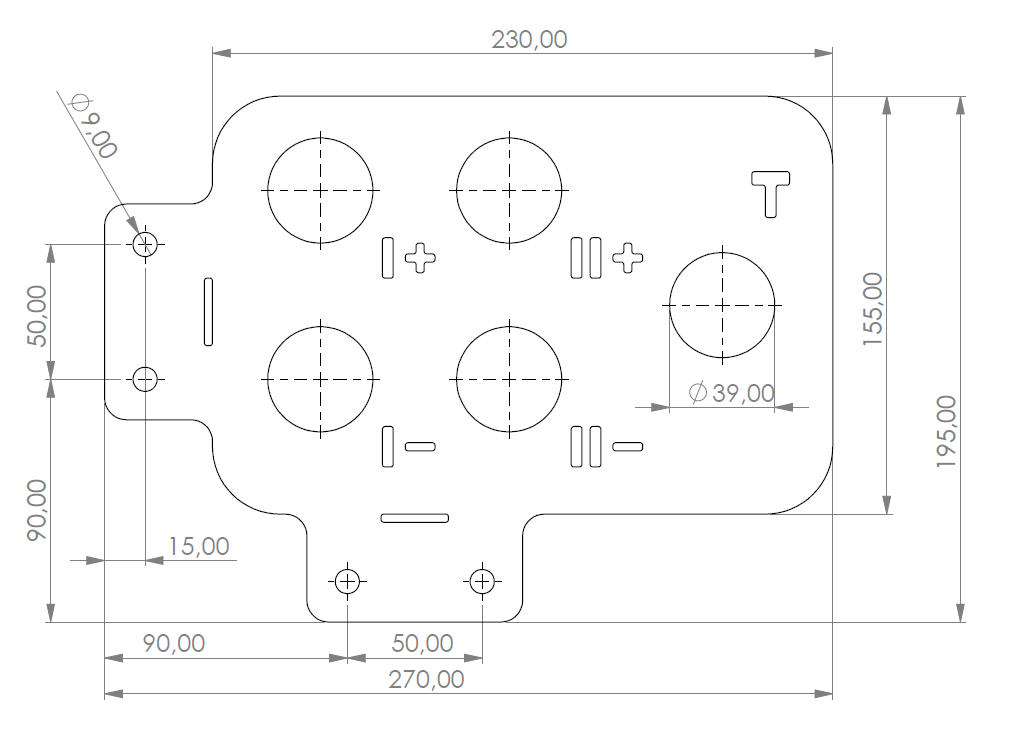

- Basic dimensions: 270x195mm
This base plate enables correct use of the push/pull function of the plug-in couplings. To do this, the plug-in couplings are mounted on the sheet metal with retaining rings so they can rotate freely.
The plugs can now only be inserted into the sleeves by pulling or pushing.
A breakaway function is also ensured.
The base plate can be mounted in various positions and, thanks to the relief slots, bent in a vise to a reasonable standard.
Unneeded mounting points can then be cut off.
Technical specifications:
- S235 steel sheet
- 4mm material thickness
- Laser cut (with oxygen)
- Basic dimensions: 270x195mm
SKU:
14 in stock
Regular price
€30,00 EUR
Regular price
Selling price
€30,00 EUR
Including taxes.
Shipping is calculated at checkout.
