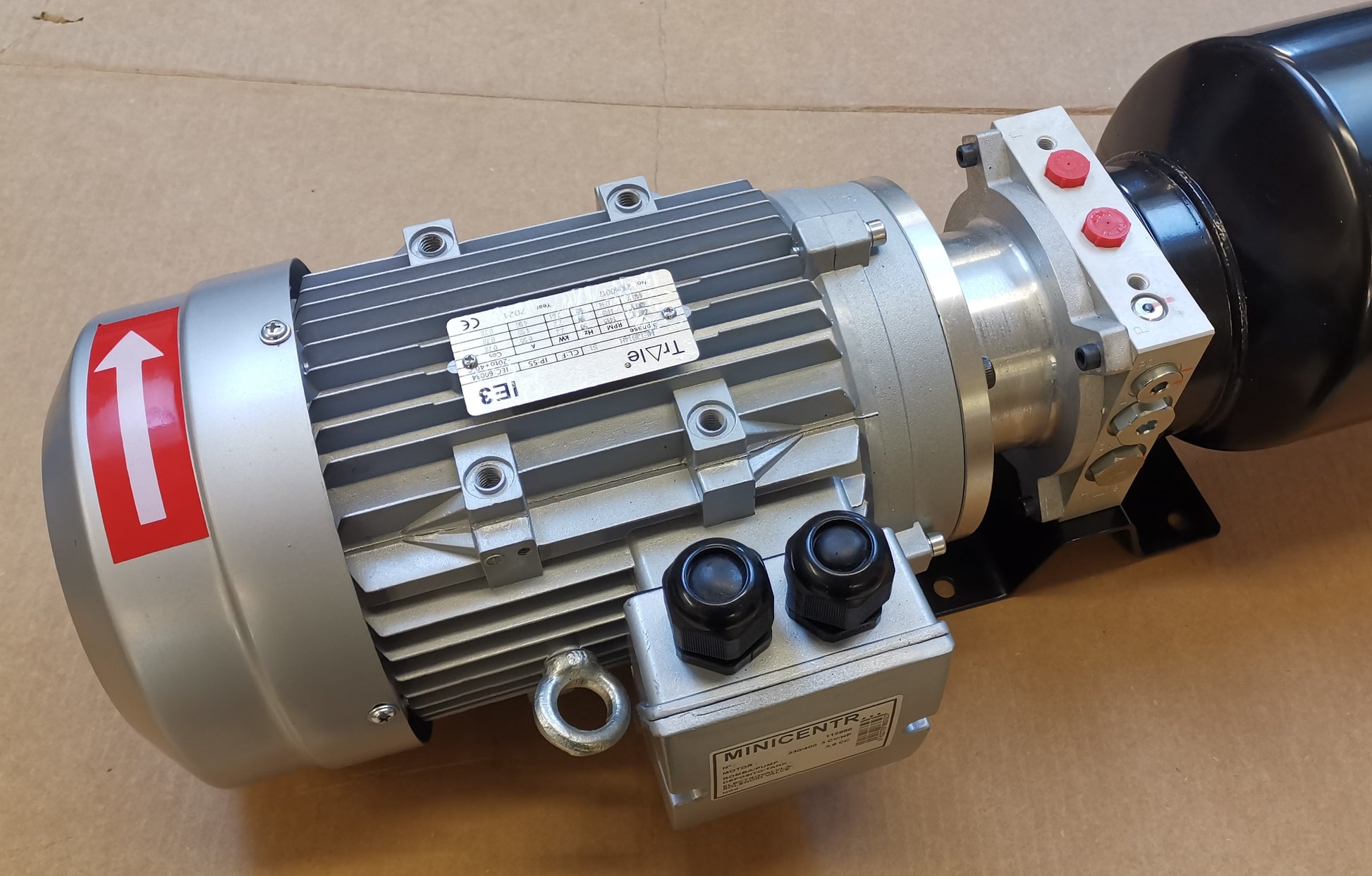

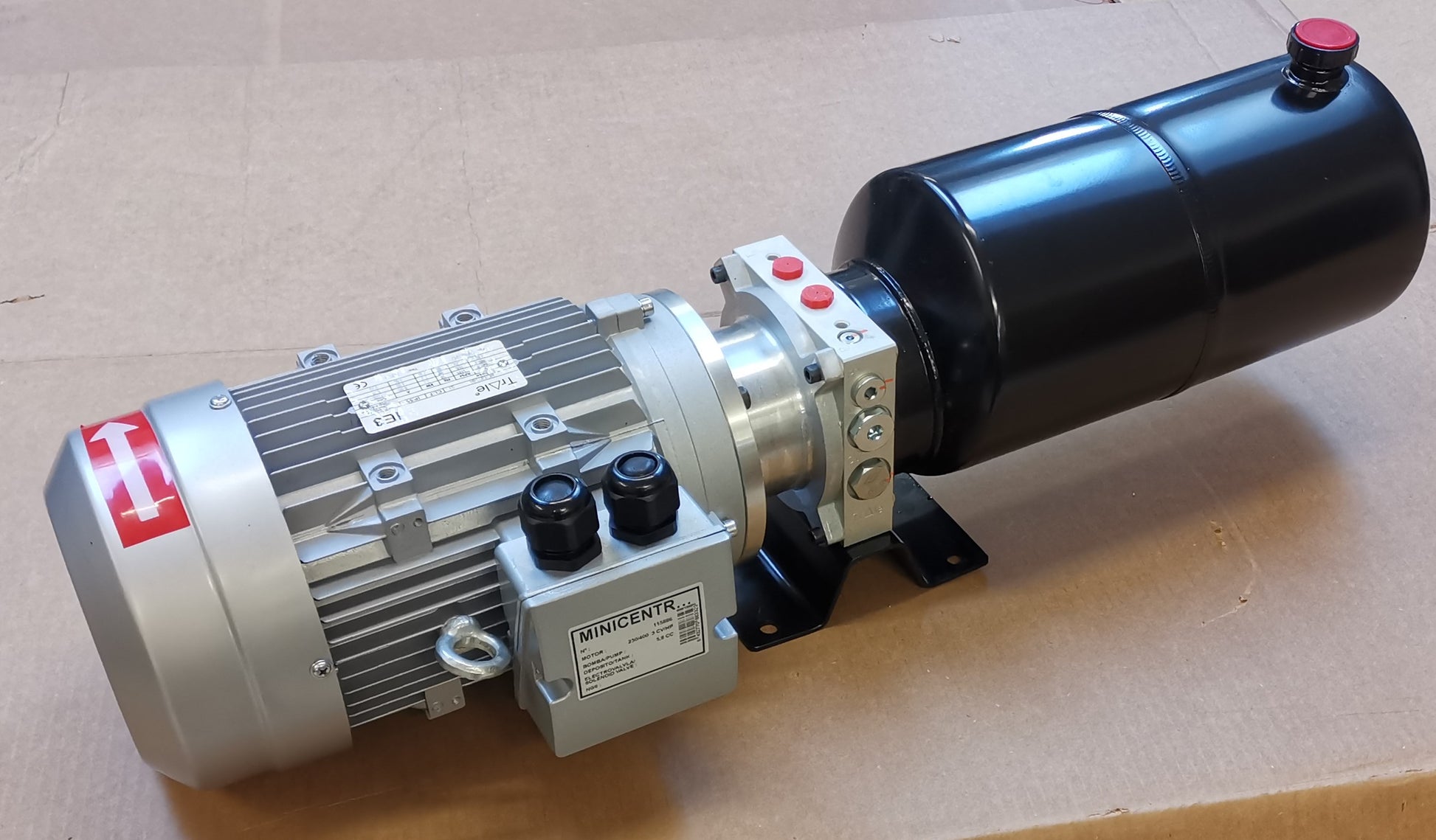

Compact unit 380/400V 2200 watts

High-quality new compact units from the Trale brand with 380/400V electric motors are offered here.
Motors of the highest efficiency class IE3 are installed.

They can be used for log splitters, for example.

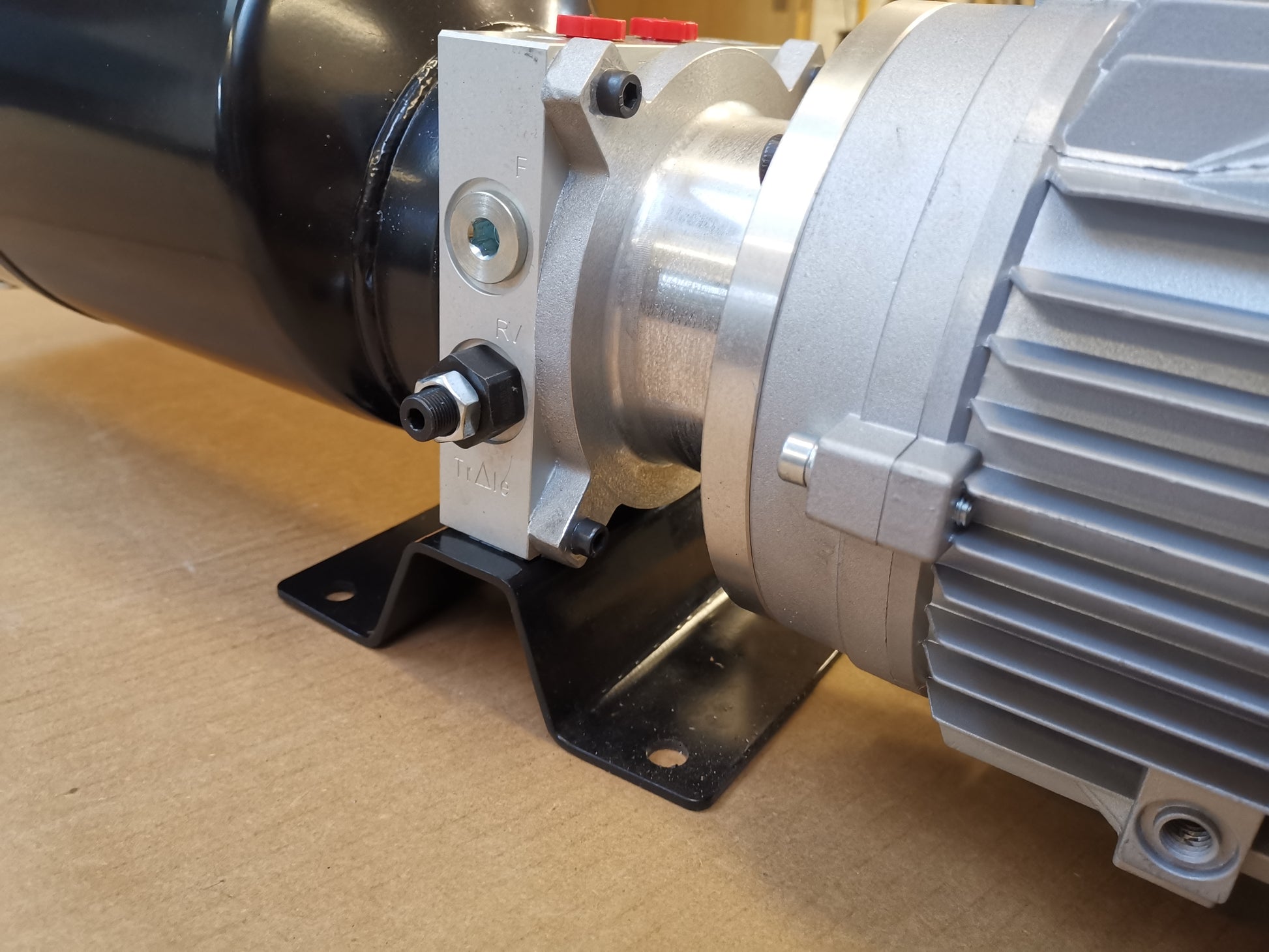

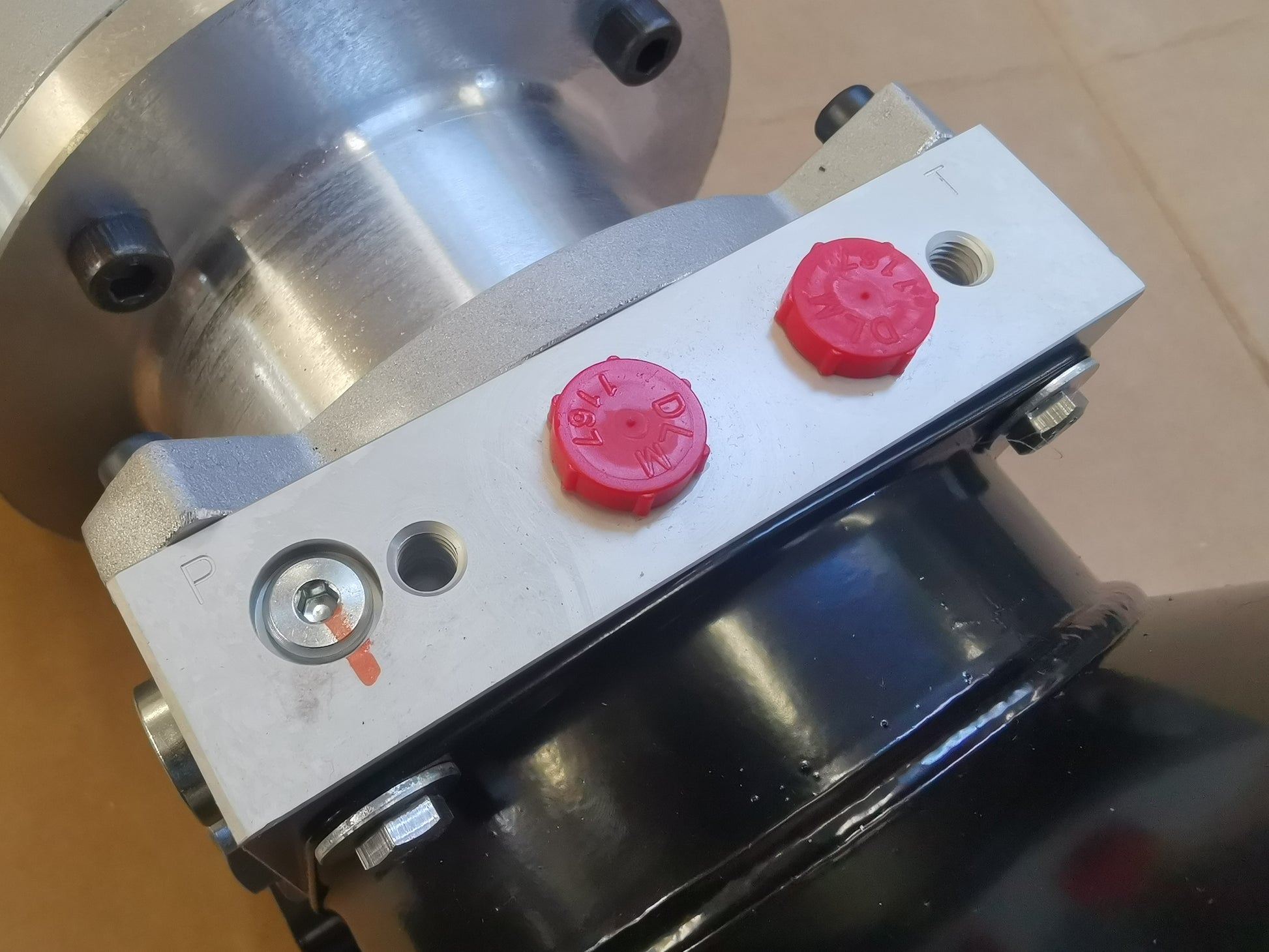

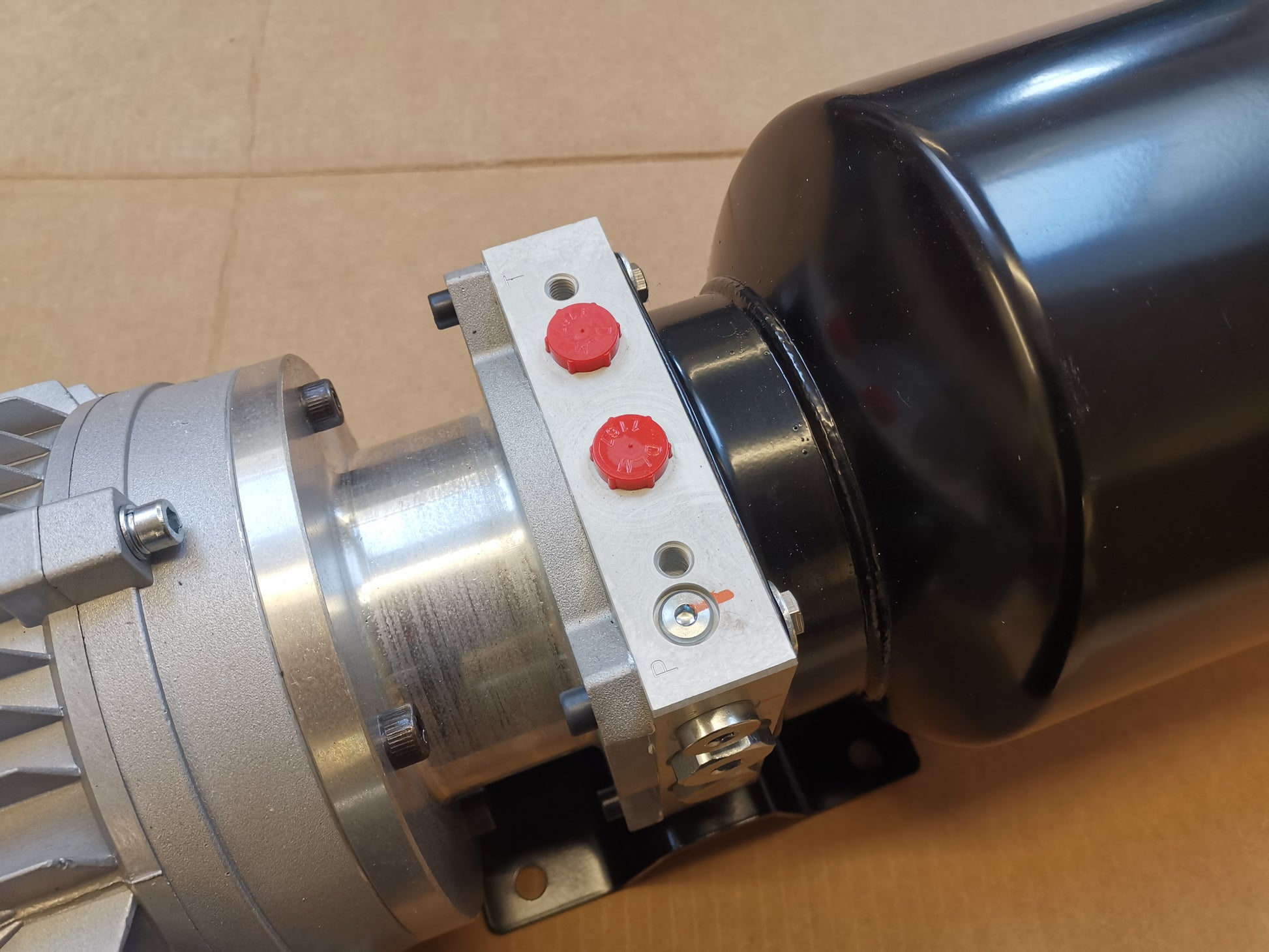

The compact unit combines tank, pressure relief valve and pump in a complete unit.

The hydraulic unit is delivered completely assembled and ready for installation. The unit was tested and adjusted on a test stand. It is delivered with a test report.

Technical data:
- Power consumption: 2200 watts
- Volume flow: approx. 8.5 l/min
- max. pressure: 160 bar
- Tank volume: 8 liters

Other versions are possible on request.
