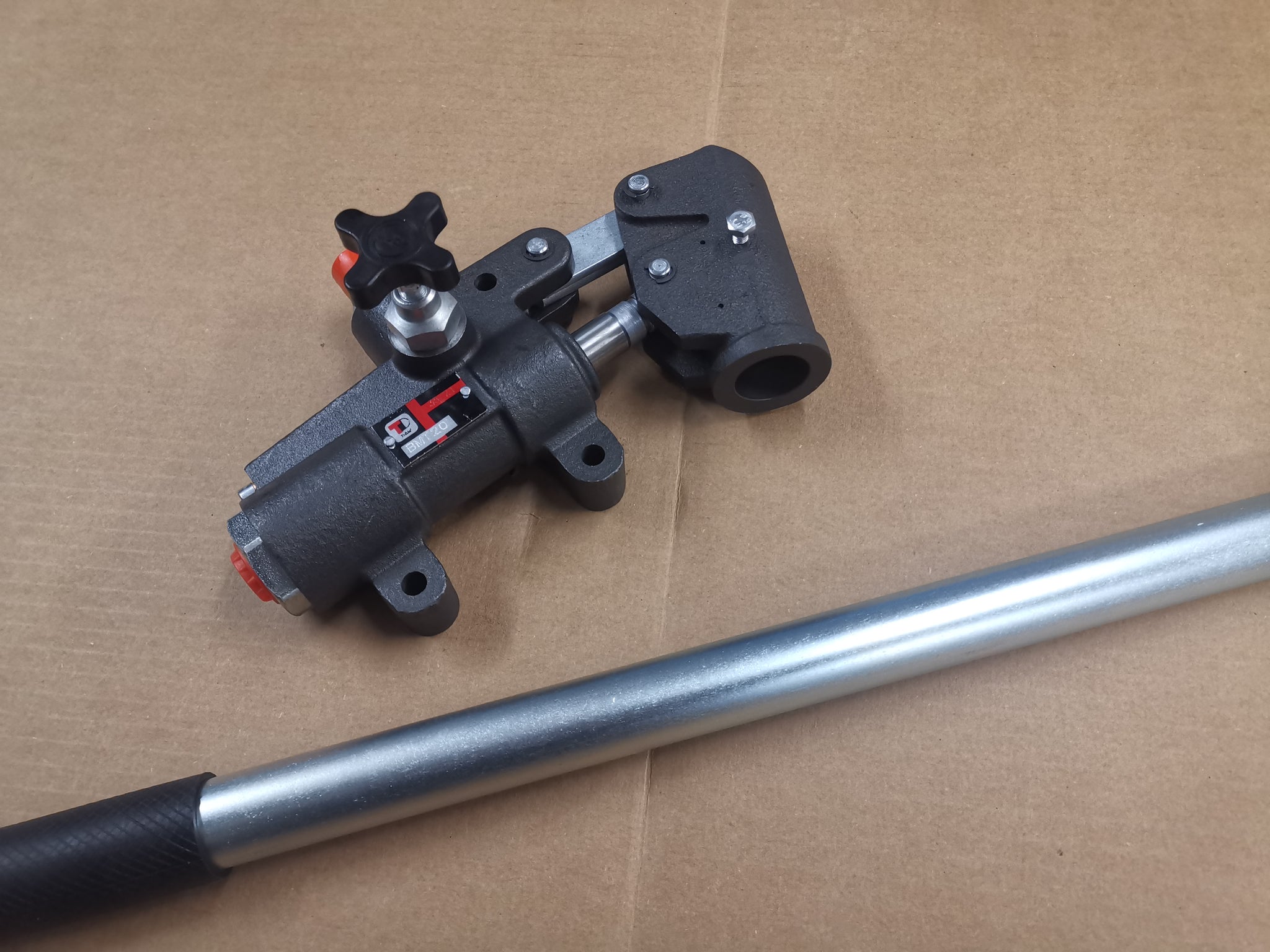

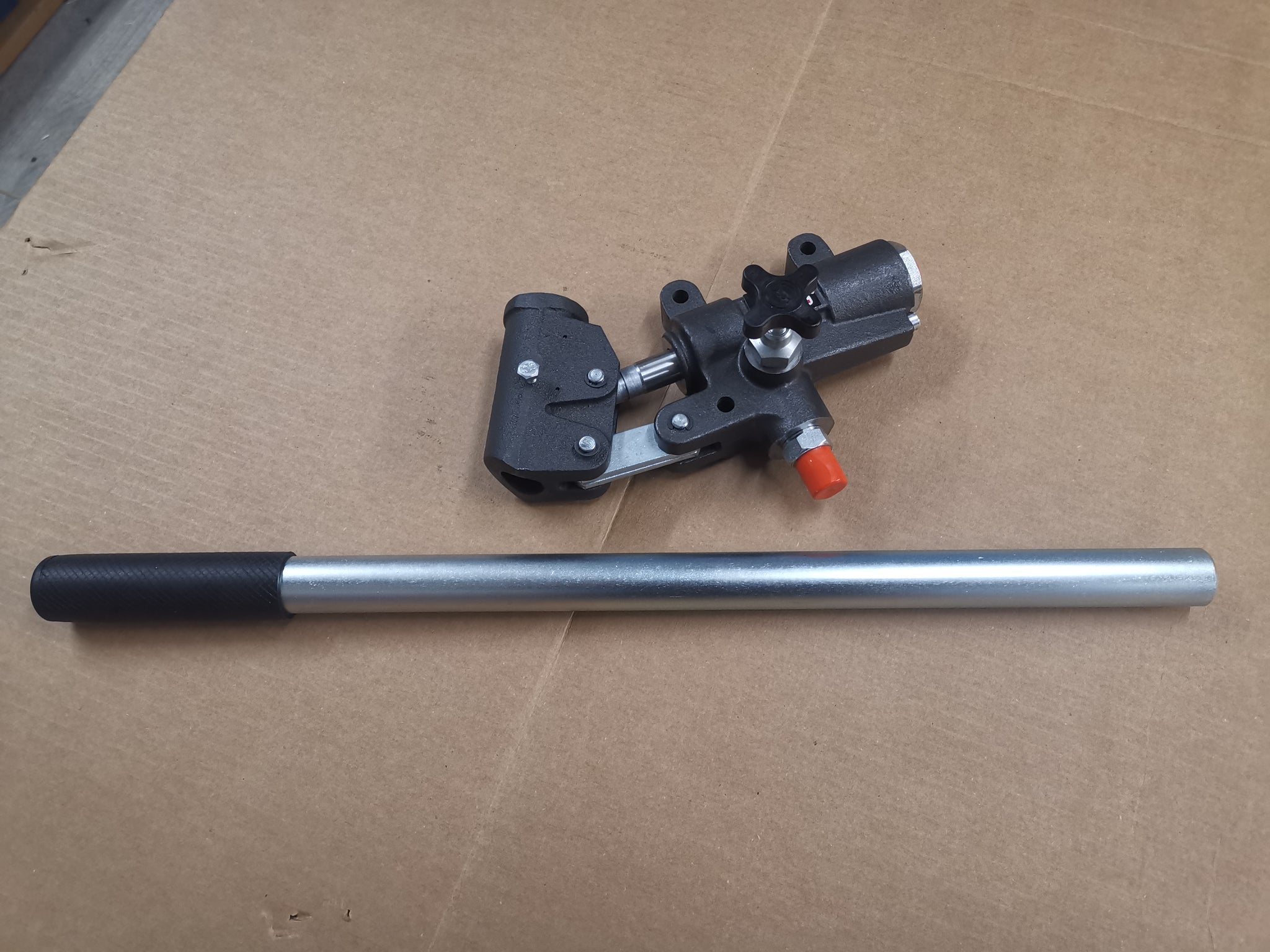

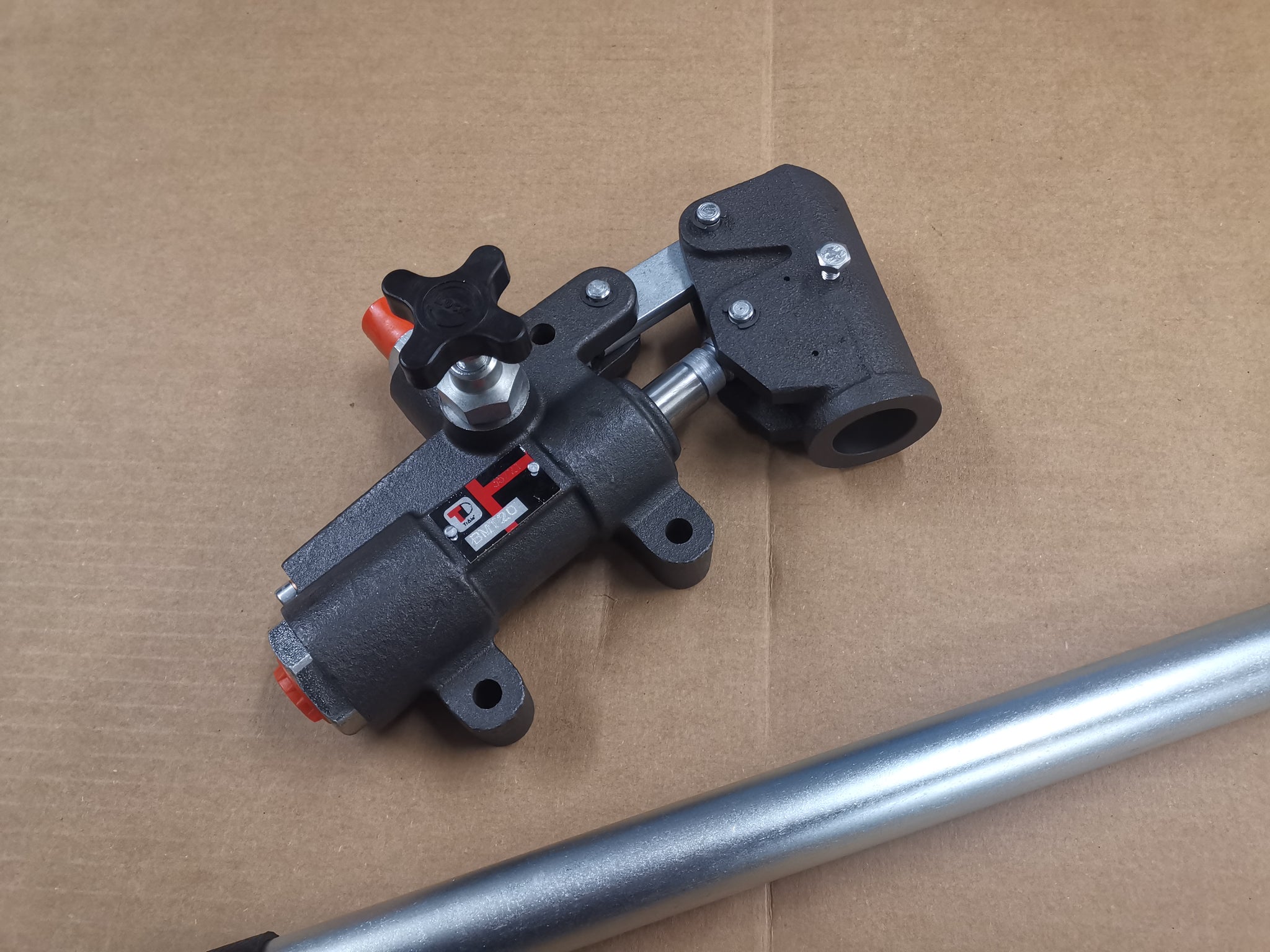

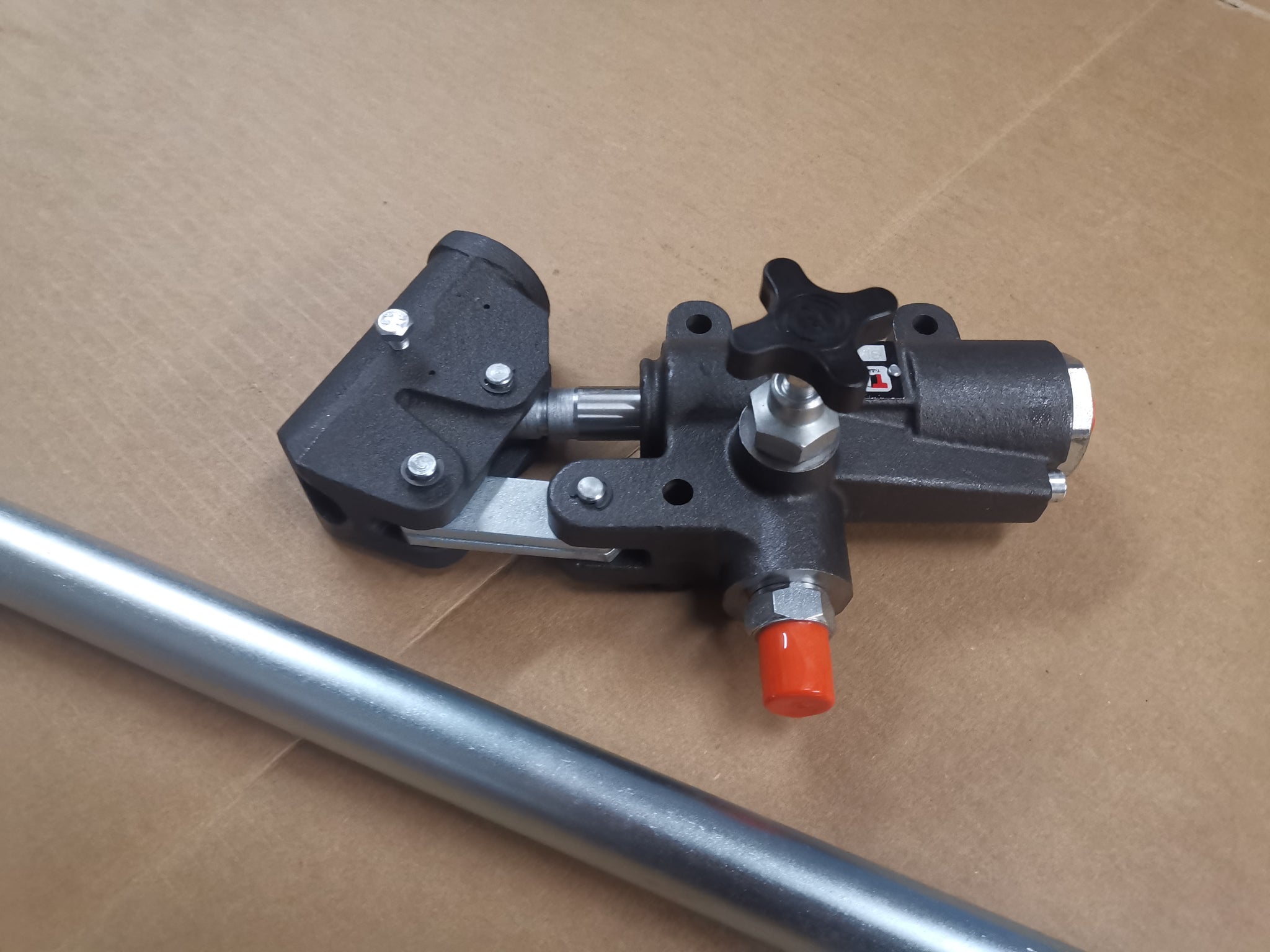

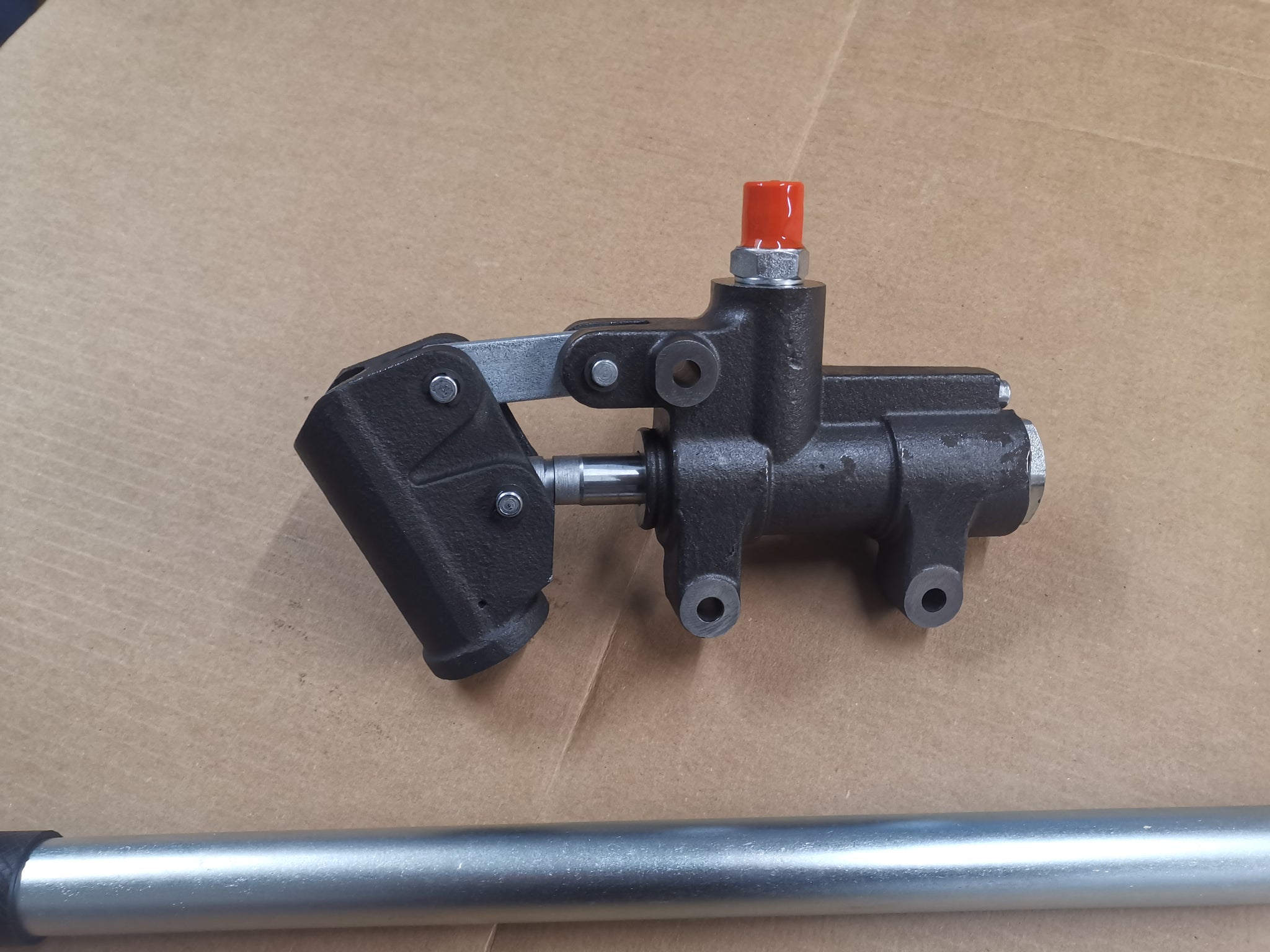

BMT20 hand pump for pipe installation 20cm³
New hand pumps from the TRALE brand, type BMT 20, are offered here.
The hand pump can be used universally; oil is sucked in through the lower connection. A small suction filter protects the pump from coarse dirt.
The pressure can be relieved using the handwheel valve.
The hand pump also includes the corresponding hand lever and the fastening screws.
Technical data:
- single-acting
- Displacement per stroke: 20 cm³
- Suction connection: 1/2" BSP
- Working connection: 3/8" BSP
- Max. operating pressure: 250 bar
The hand pump can be used universally; oil is sucked in through the lower connection. A small suction filter protects the pump from coarse dirt.
The pressure can be relieved using the handwheel valve.
The hand pump also includes the corresponding hand lever and the fastening screws.
Technical data:
- single-acting
- Displacement per stroke: 20 cm³
- Suction connection: 1/2" BSP
- Working connection: 3/8" BSP
- Max. operating pressure: 250 bar
