5-fold control block CETOP NG06 with control box OIL box with toggle switch

Offered here are ready-assembled control blocks with joystick control.
The control block can be retrofitted, for example, to an electrohydraulic control on a slurry tanker, loader wagon, or other various simpler devices.

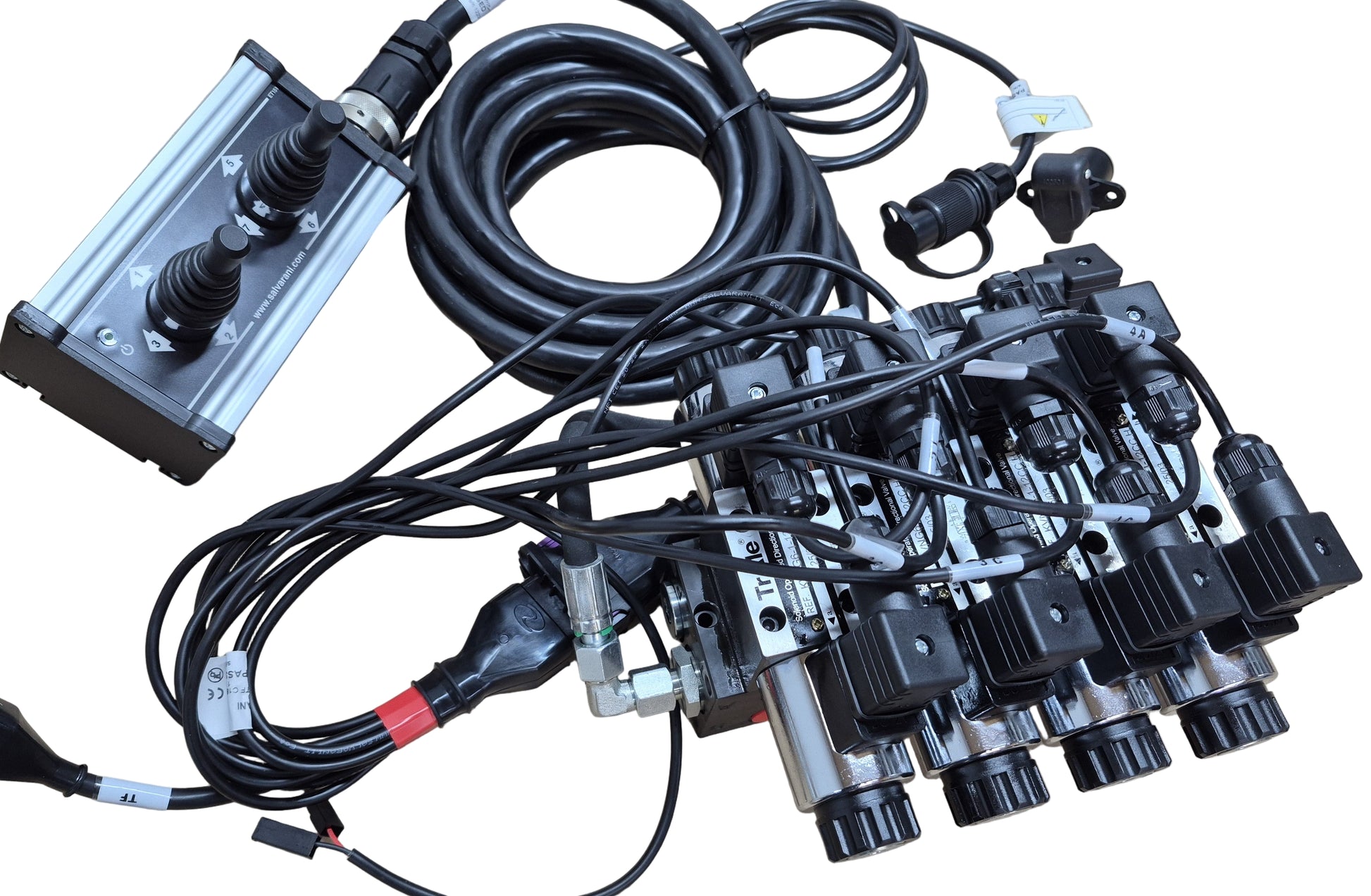

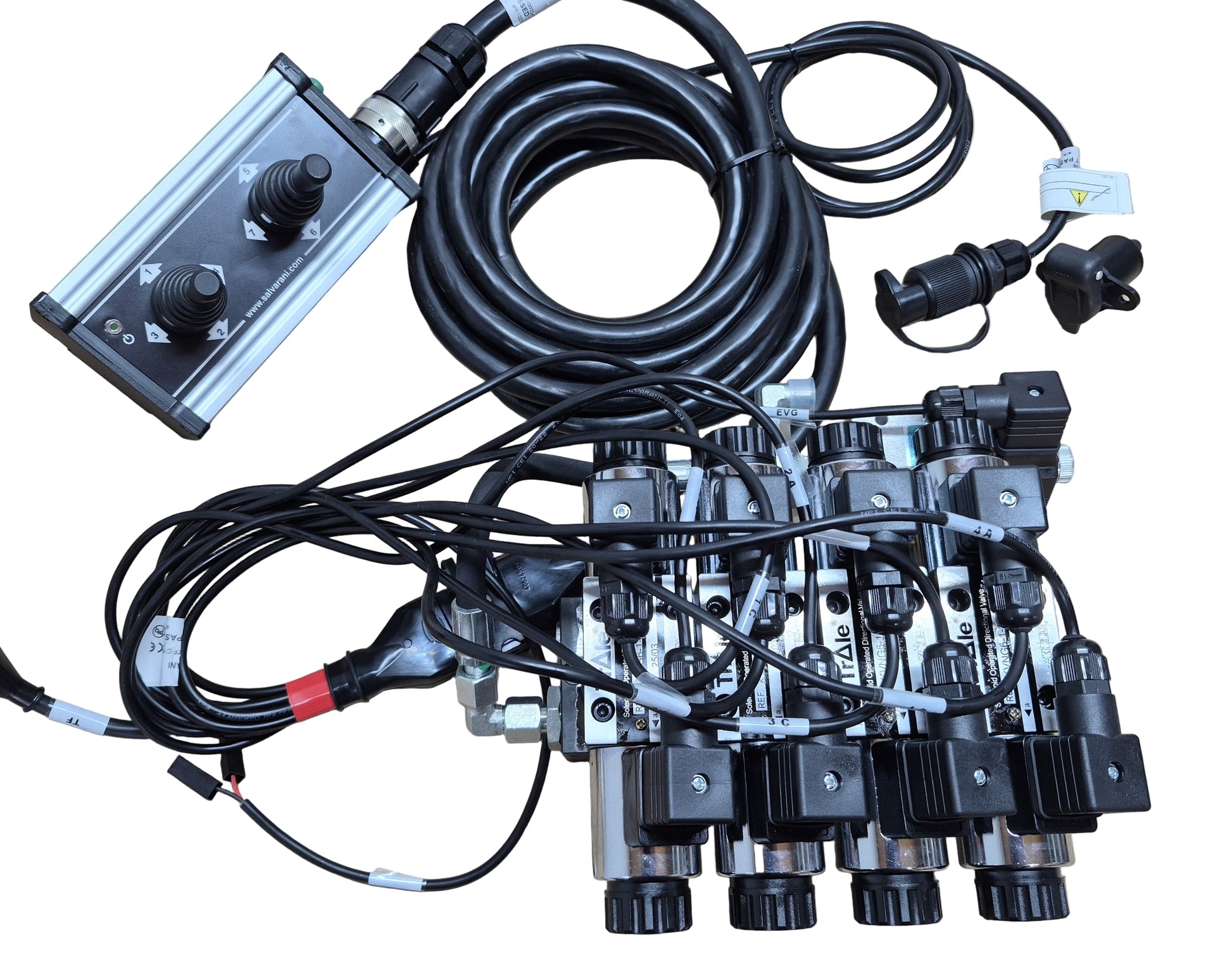

The control block is delivered fully assembled and ready for installation with control.

The control block has four double-acting sections that are locked in the neutral position. Optionally, individual sections can be delivered with integrated lock blocks. This is recommended if internal leakage in the directional valves would be problematic, such as with small cylinders.

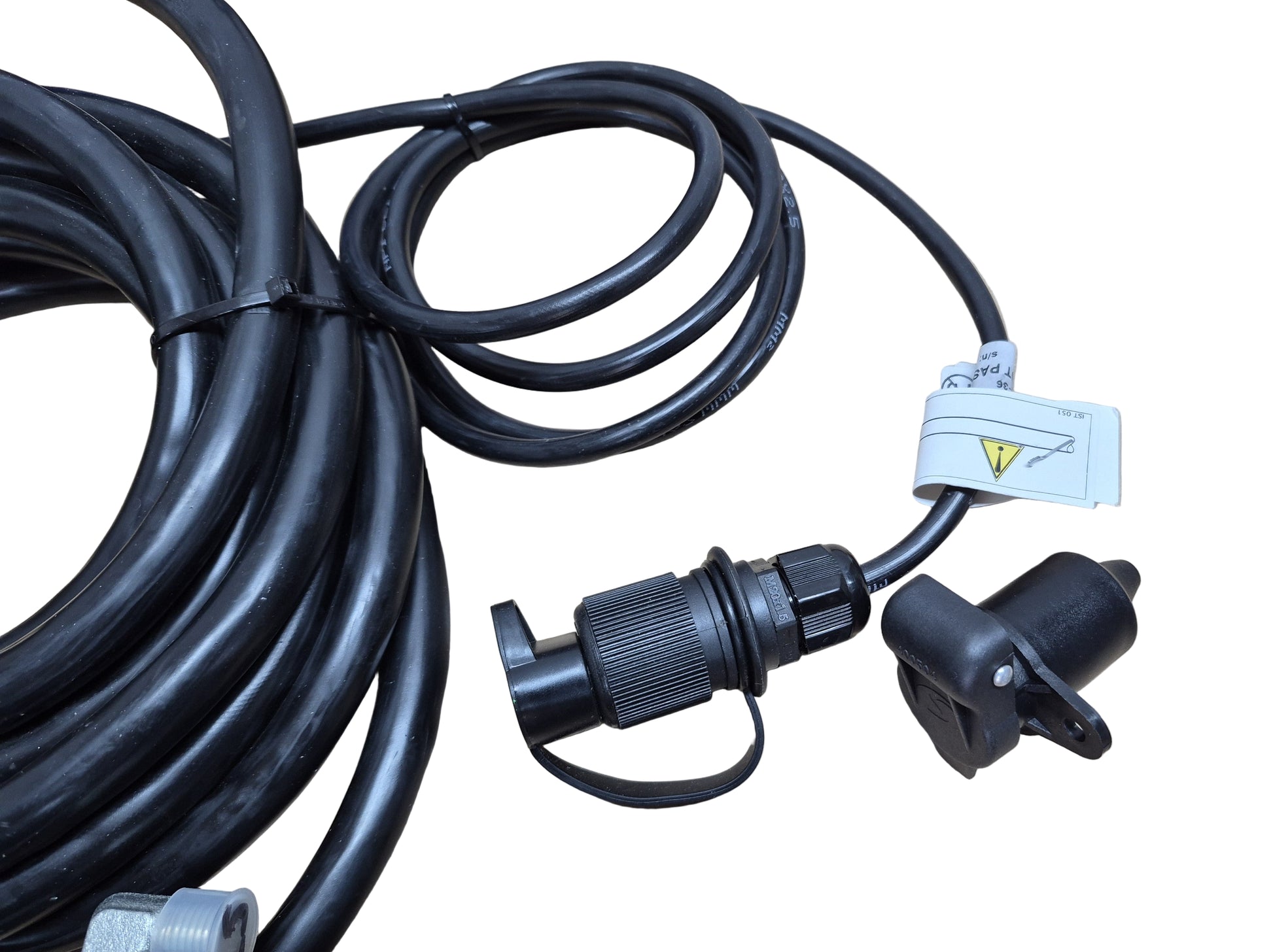

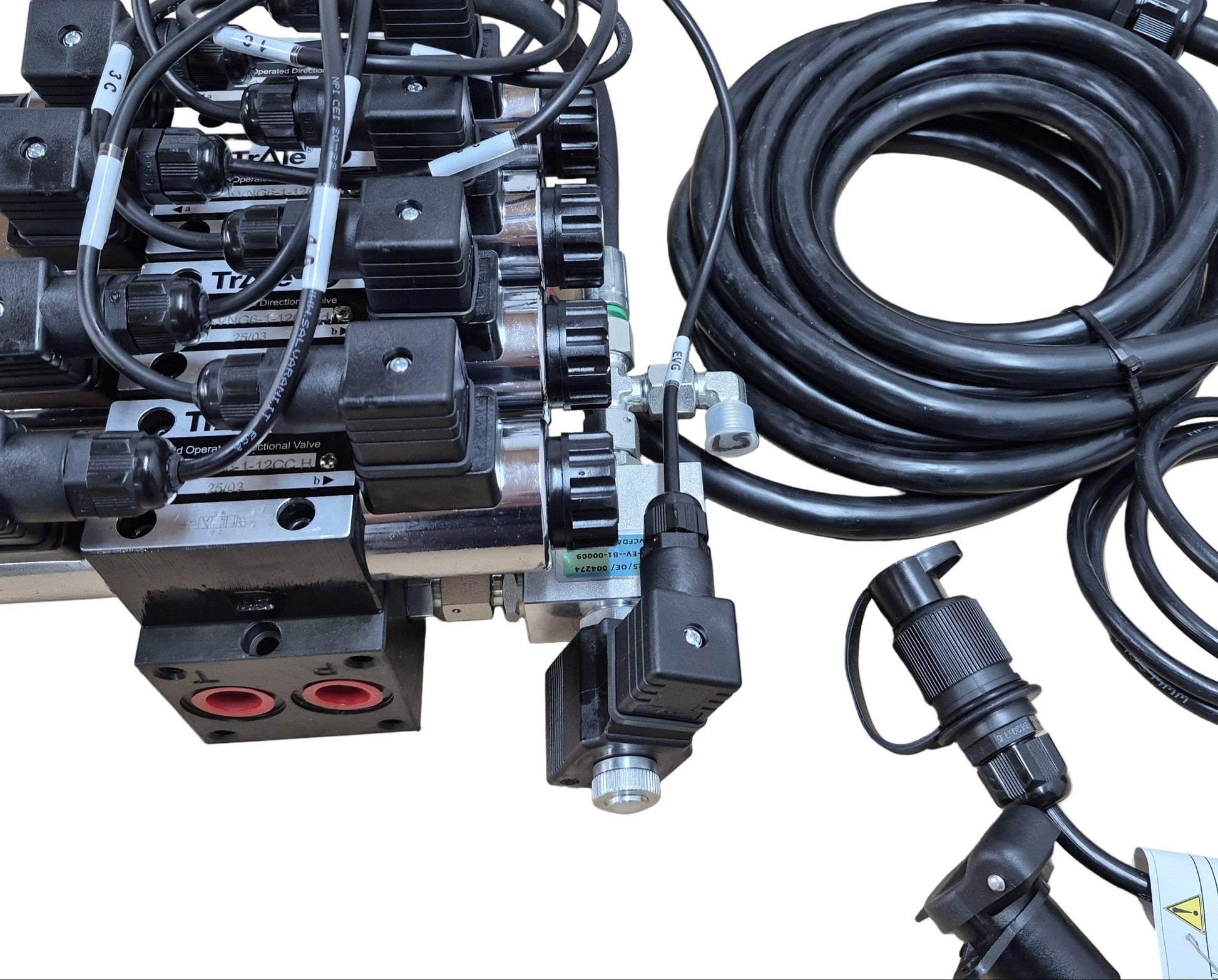

Included in the delivery is an extension cable with a length of seven meters. Also included is a supply cable with a three-pole plug and the matching socket.

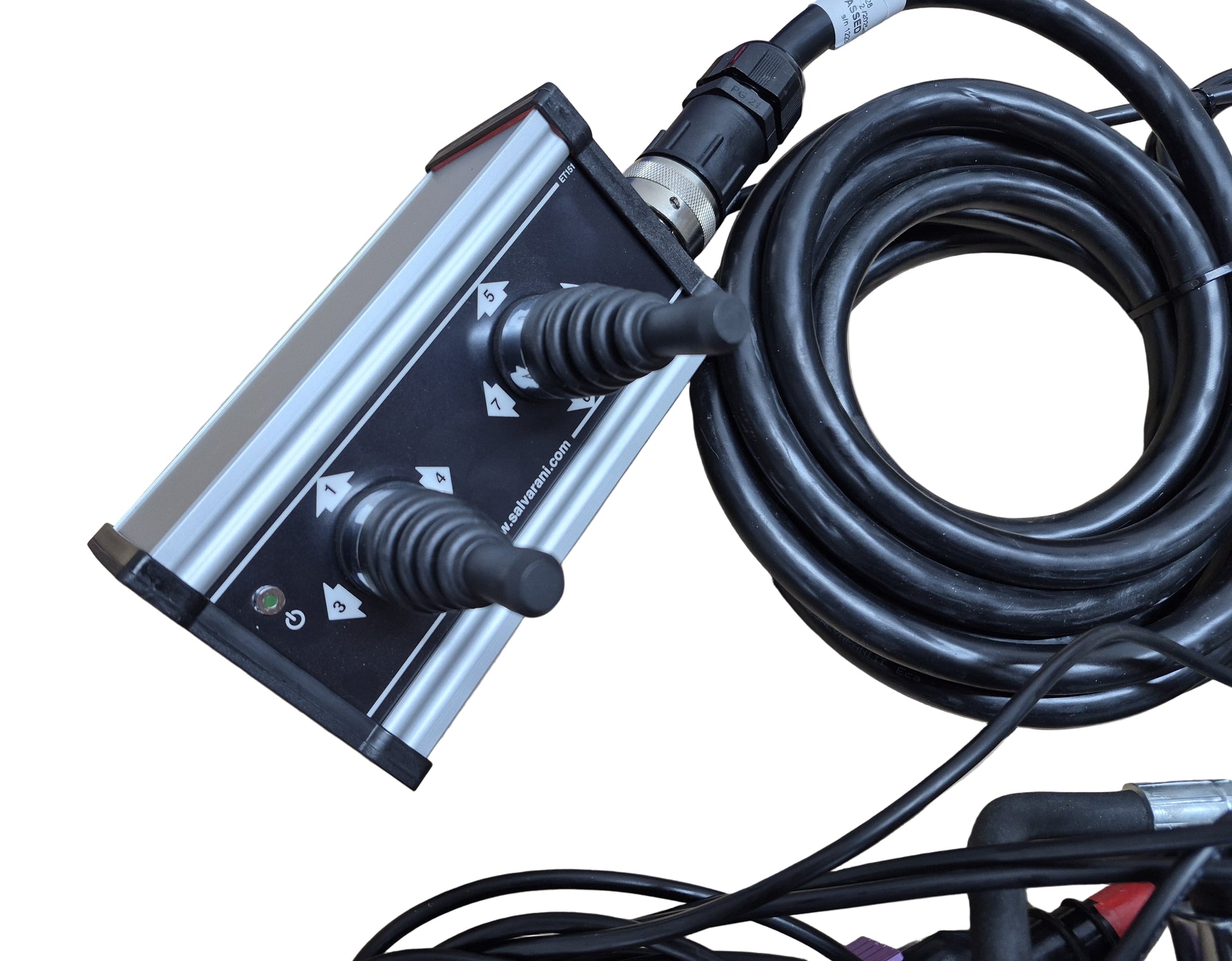

The control for the pilot valve is integrated into the control box.
Depending on the requirement, the configuration is for load-sensing systems (as shown in the pictures) or with a large pilot valve for constant flow systems. Optionally, the set is also available with a switch option between constant flow and LS systems.

The version for LS systems comes with signal damping and relief.

Technical data:

• max. input pressure: 250 bar
• adjustable pressure:
  • 50-250 bar (constant flow version)
  • 100-280 bar (switchable between LS and constant flow)
• max. input flow rate:
  • constant flow version
    • approx. 80 l/min
  • LS version
    • approx. 120 l/min

  • switchable between LS and constant flow
    • approx. 120 l/min
• max. flow rate per section: 60 l/min
• switching voltage: 12 VDC
• P/T connections: 1/2" BSP
  • For switchable version: 3/4" BSP

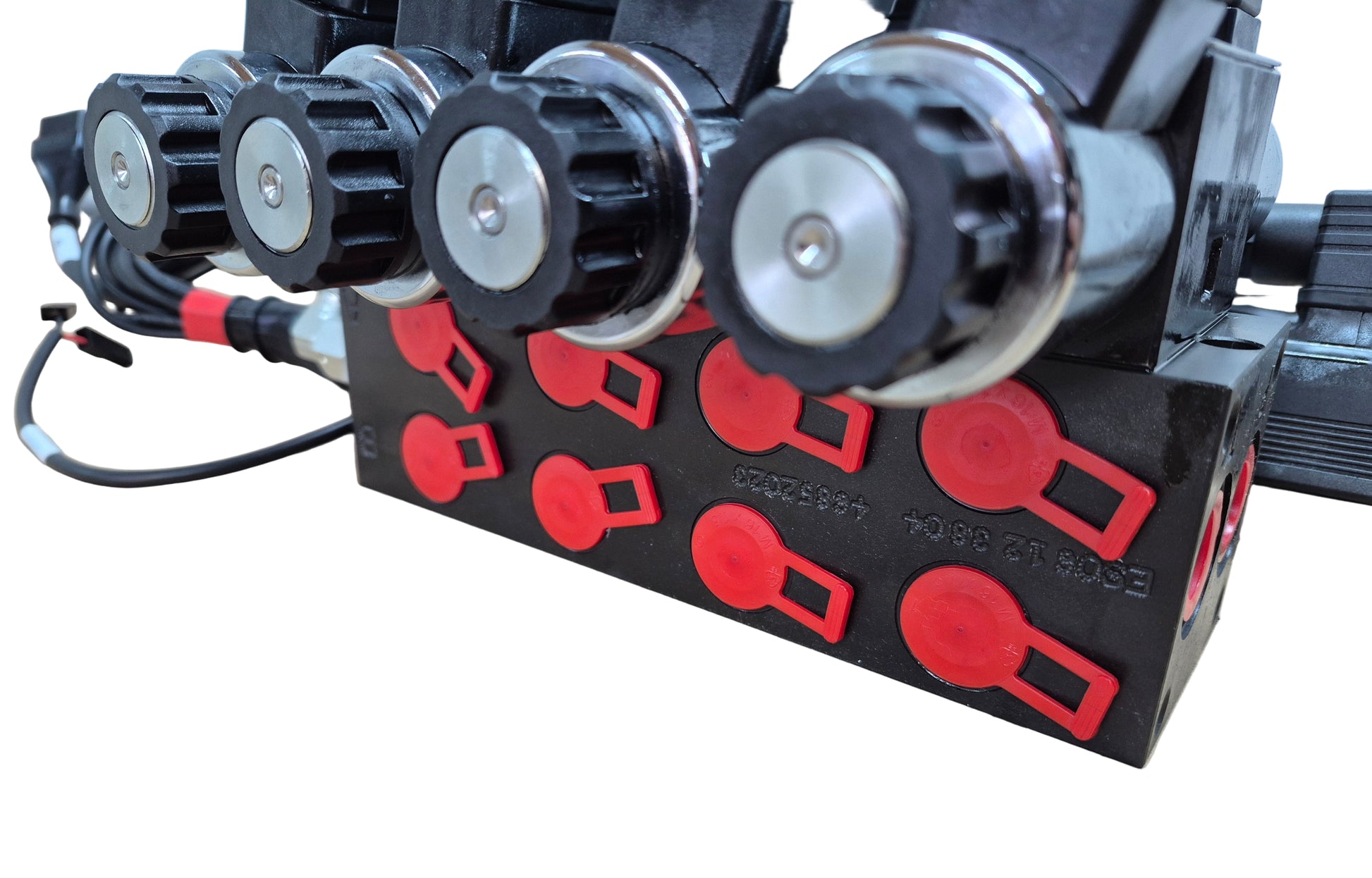

• working connections: 3/8" BSP


The set is equipped with black/white directional valves; if you require a more sensitive version with proportional directional valves, you can find a comparable set with proportional directional valves here.

Other configurations are available on request!
