3-way flow control valve up to 90 l/min 1/2"
3-way flow control valve up to 90 l/min 1/2"

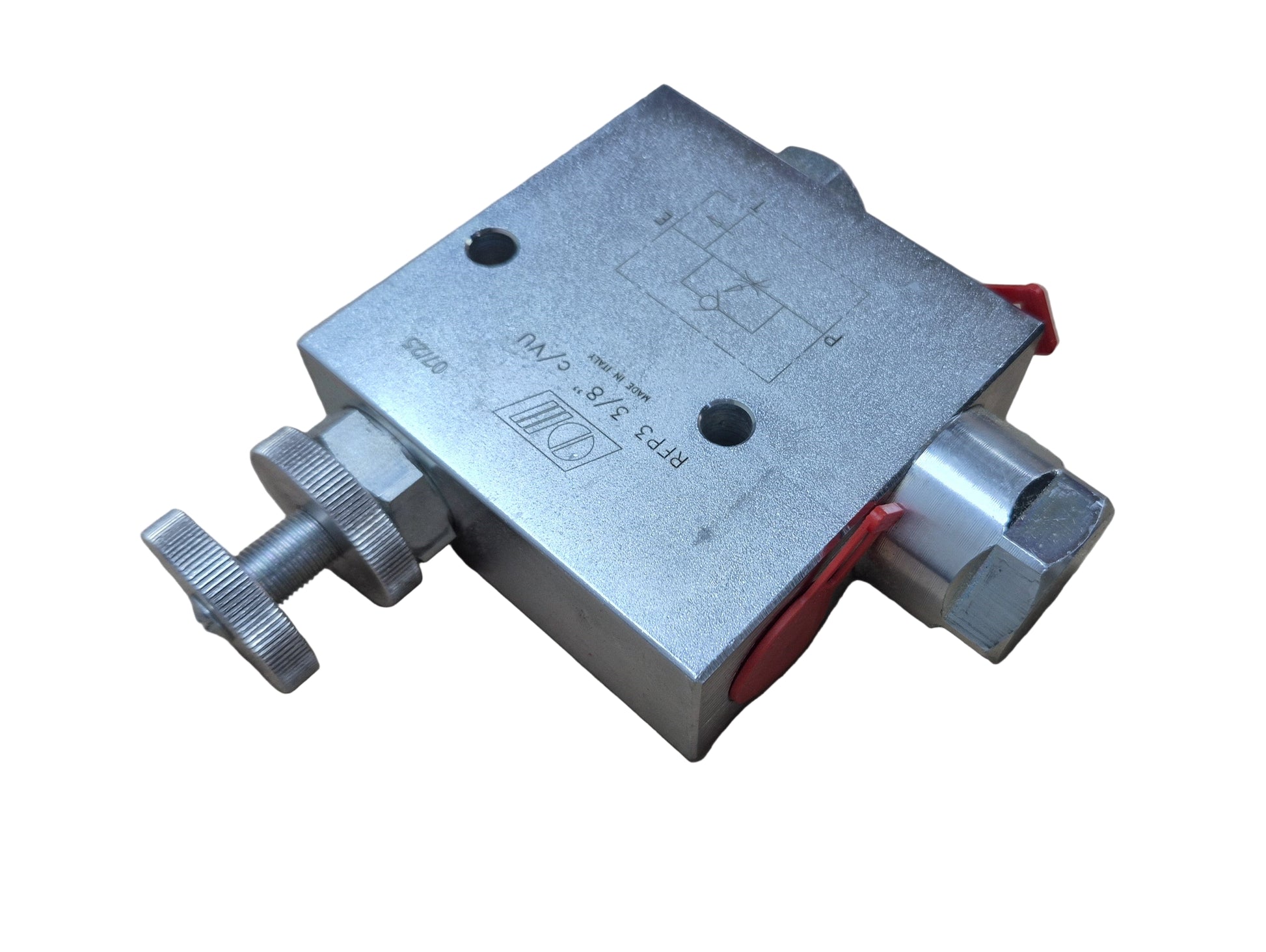

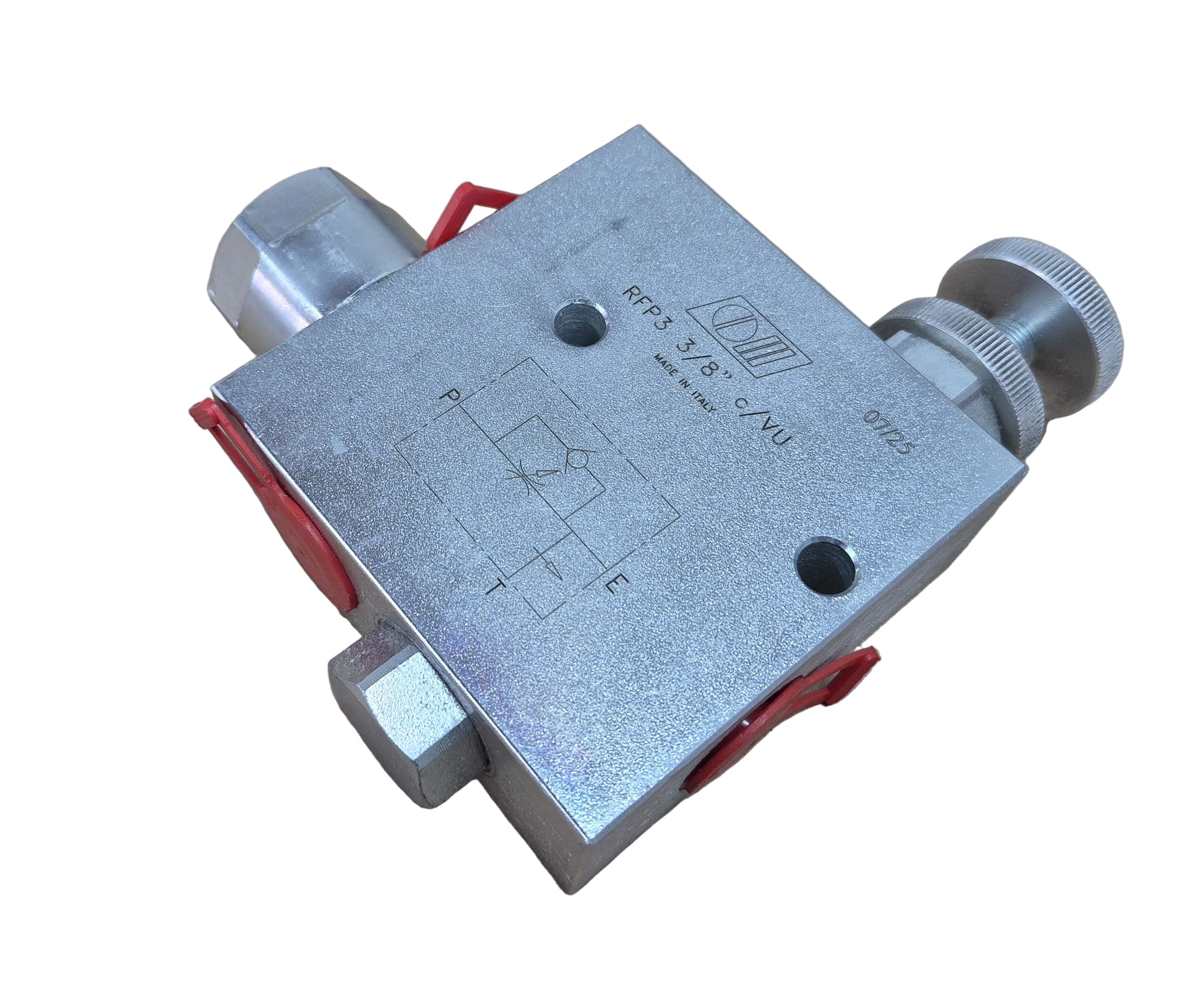

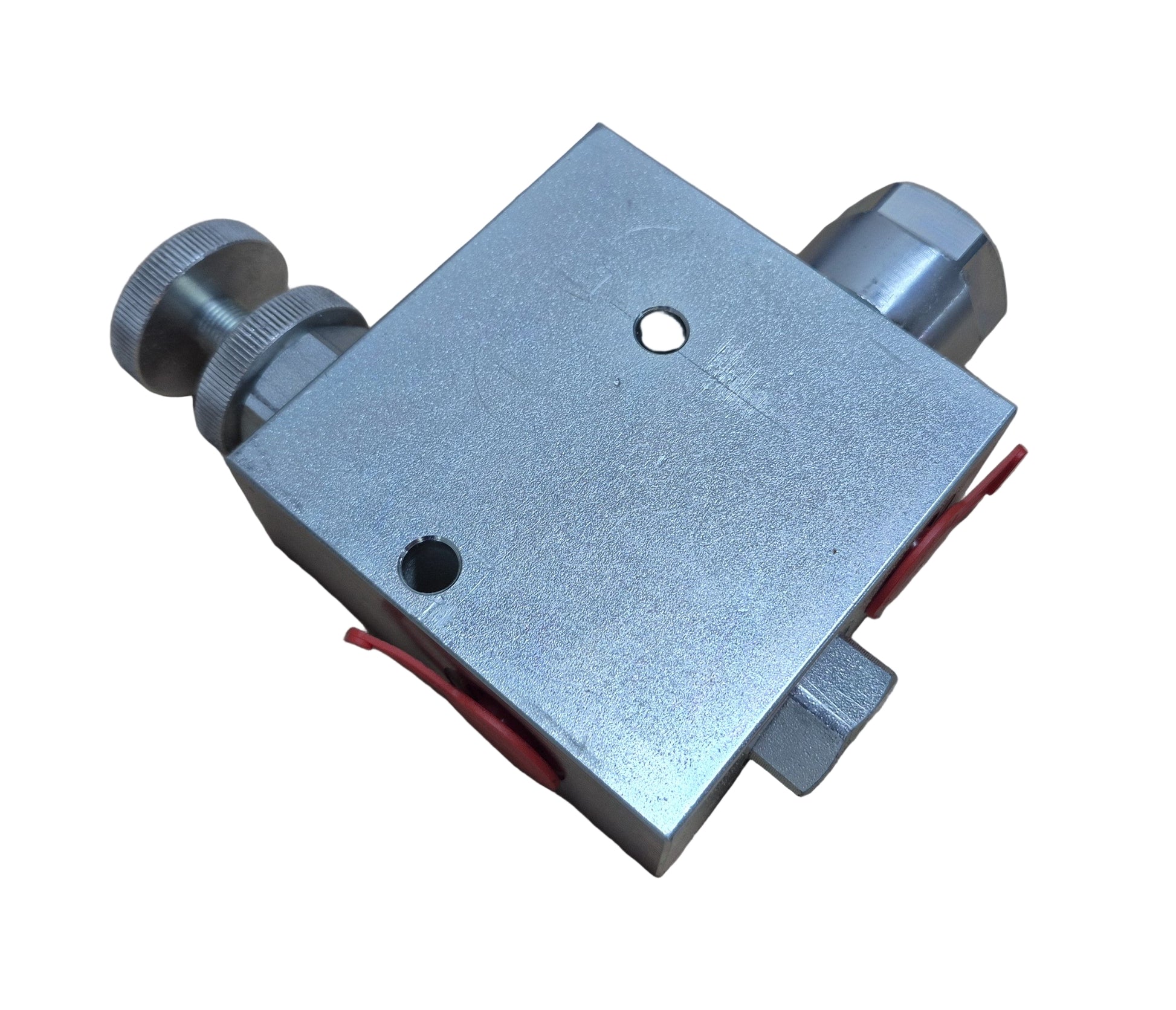

Adjustable 3-way flow control valves (pressure compensated) are offered here.
The controller is adjusted by the handwheel on the top.
The special feature of this valve is that it has an integrated bypass check valve, which, when the flow is reversed (for example, in a double-acting control device), ensures that the flow is directed past the control to the P port. The excess T must be returned to the tank without pressure.
Technical data:
- Maximum pressure: 350 bar
- Maximum input flow rate: 60 l/min
- Maximum regulated flow rate: 50 l/min
- Working connections: 3/8" BSP

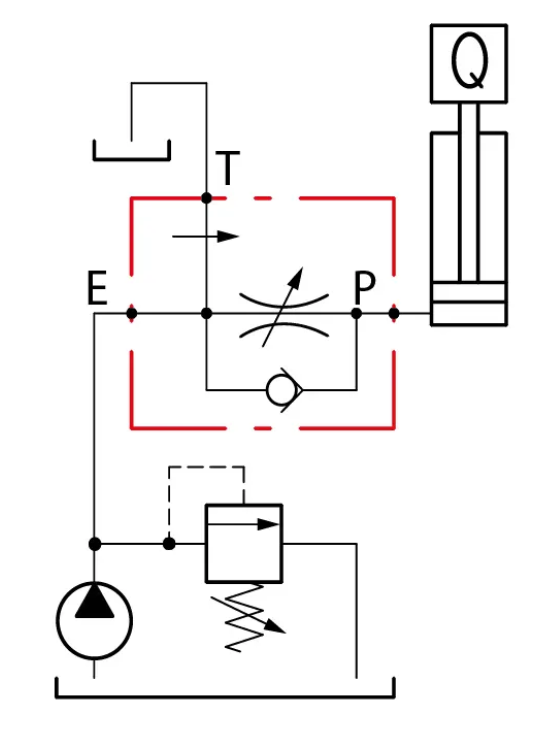

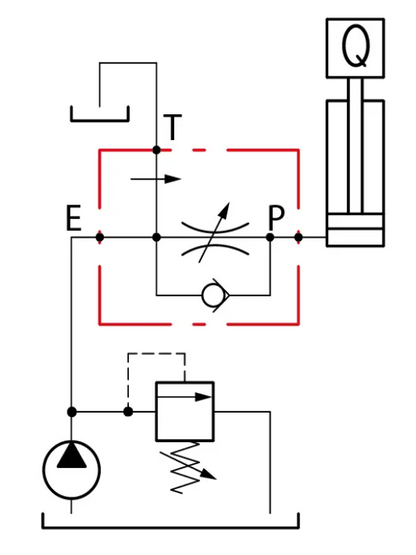

Connection assignment:
E= Pump input
P= regulated flow rate (prioritized)
T= excess flow rate (tank)
SKU:RFP3-38-RV
7 in stock
