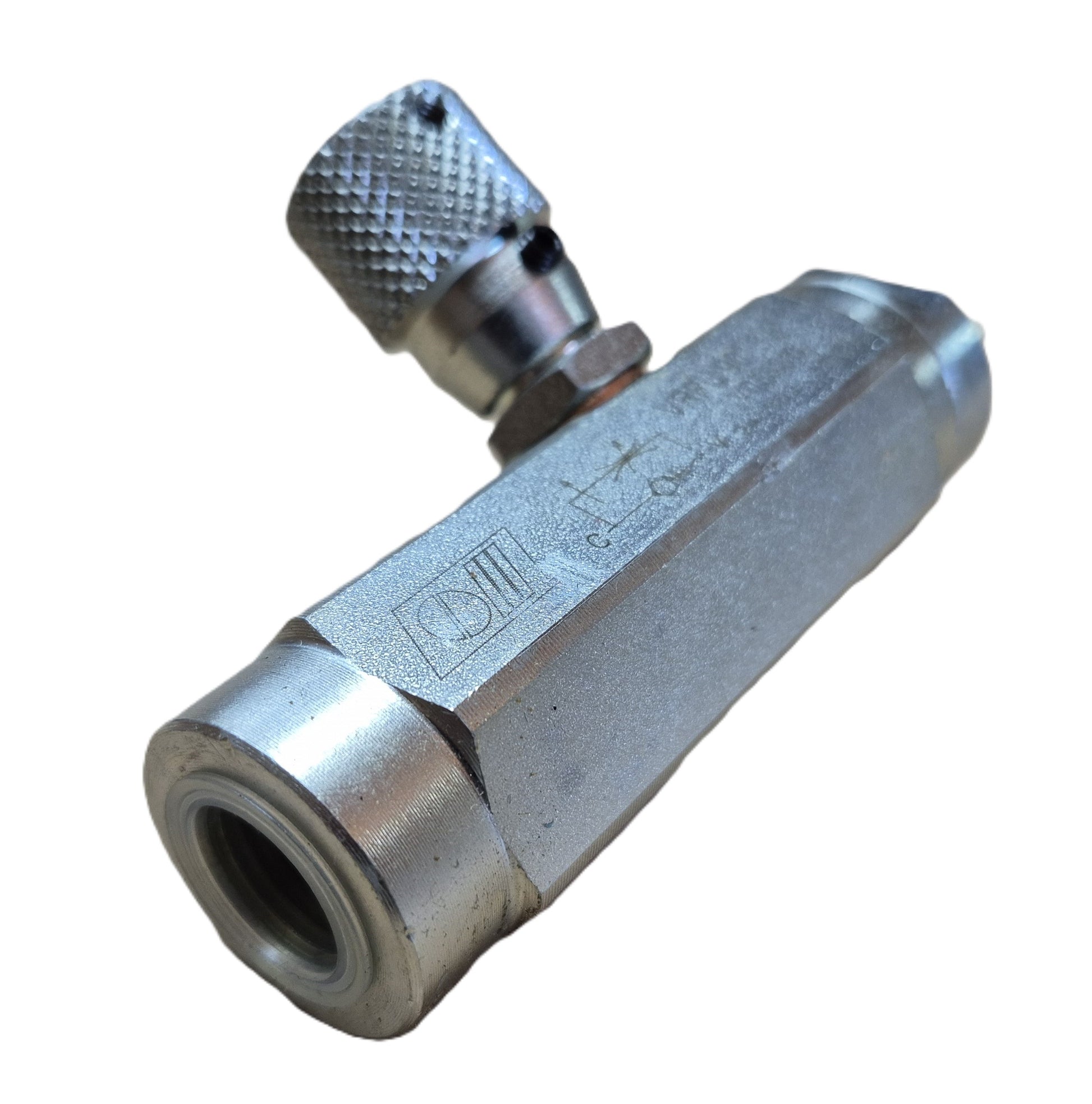

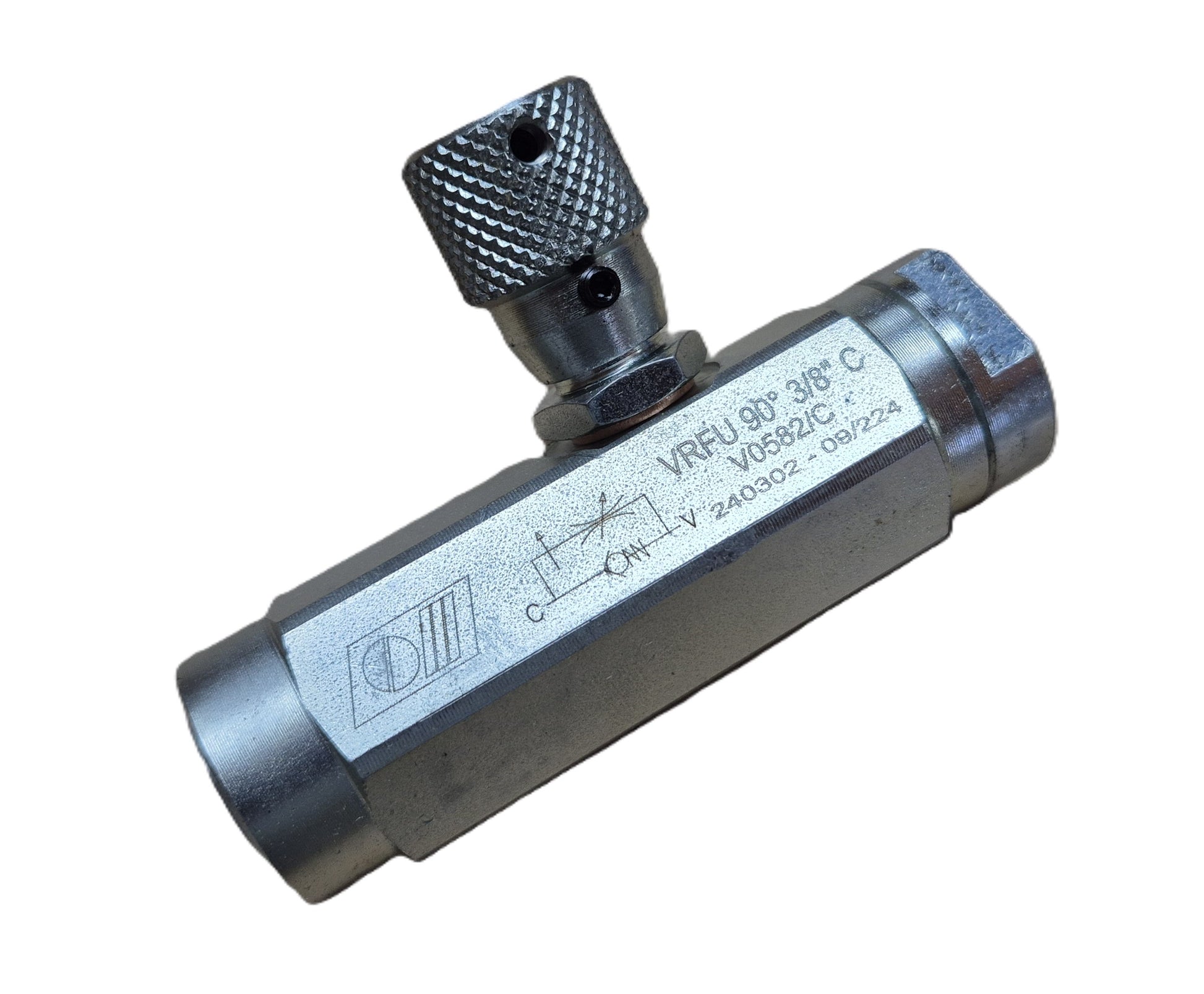

2-way flow control valve, various sizes up to 45 l/min

2-way flow control valve, various sizes up to 45 l/min

Adjustable flow control valves for hydraulic applications are offered here.
The regulator is adjusted by the handwheel on the top.

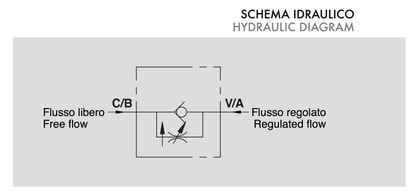

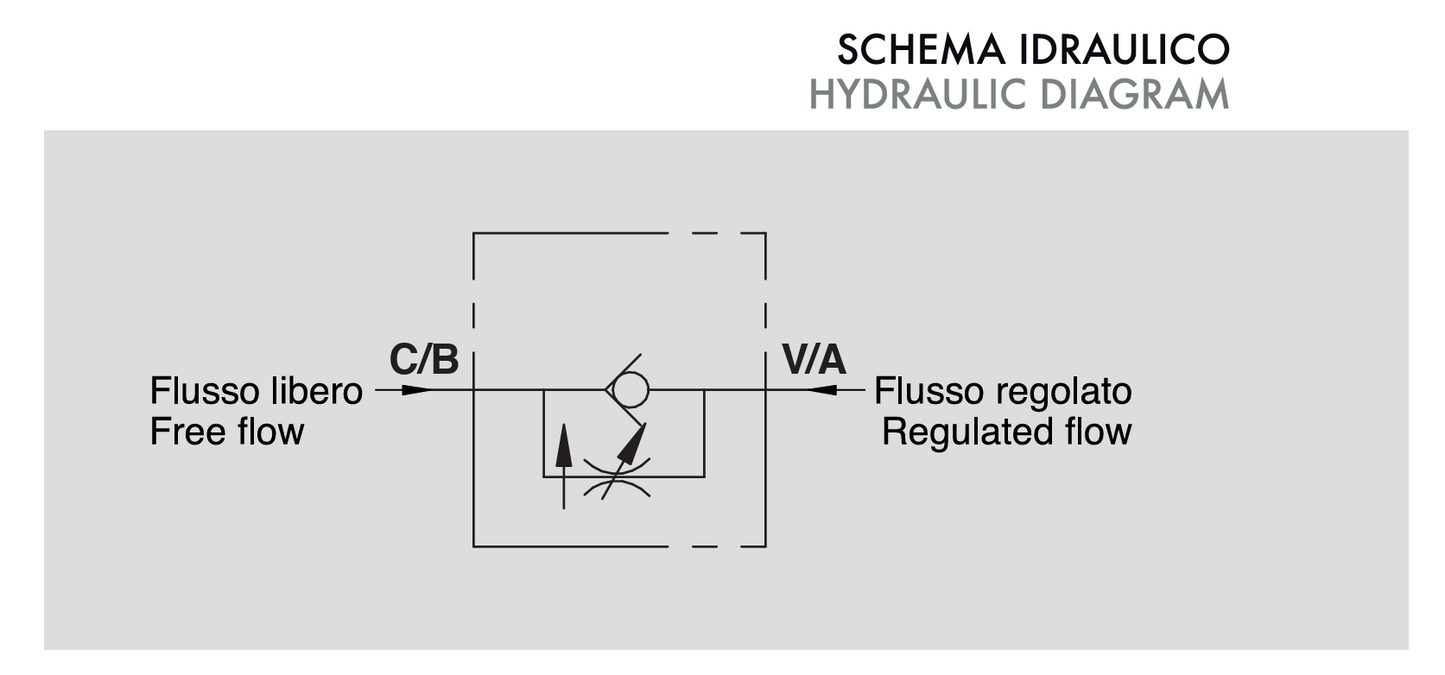

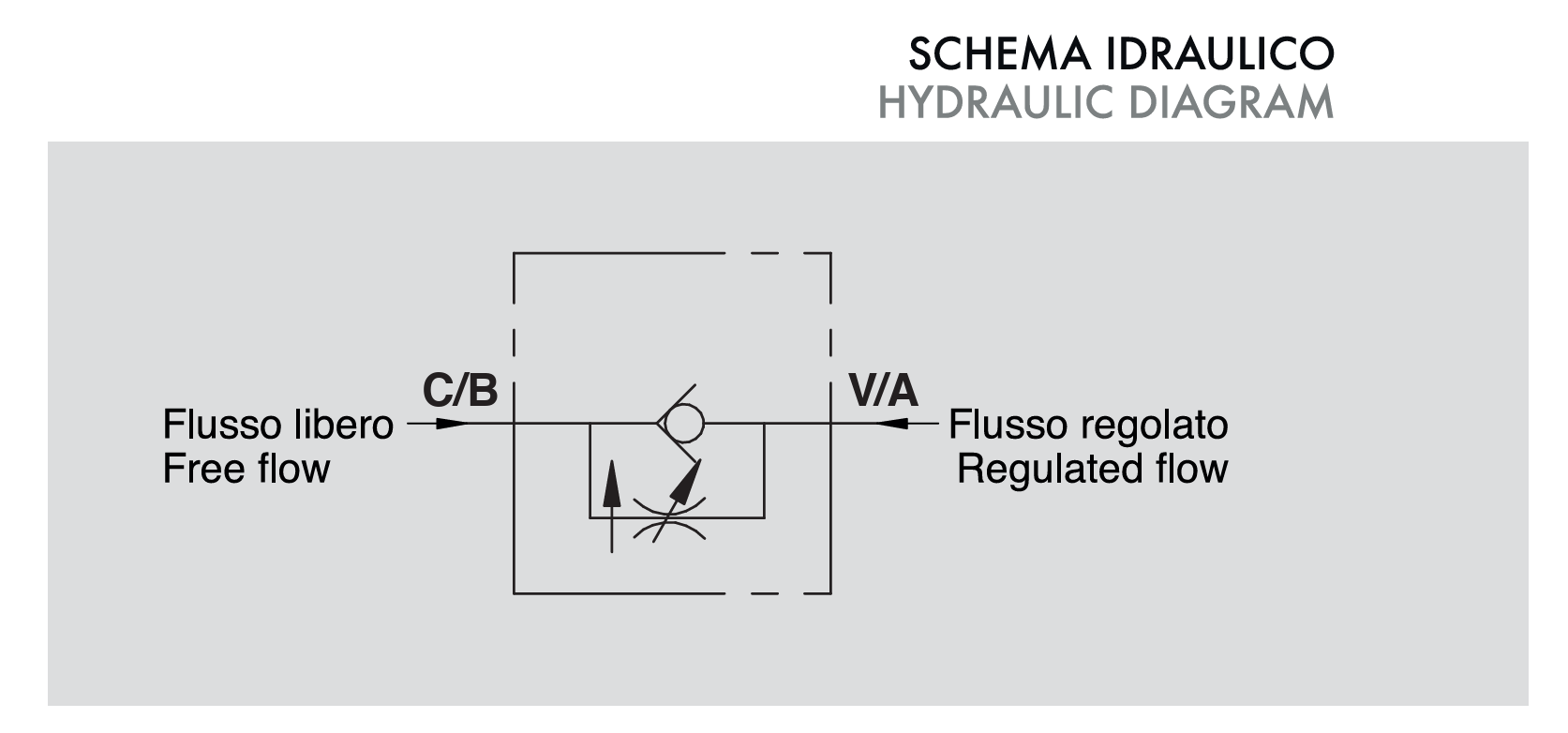

In one flow direction, the oil volume flow is throttled, while in the other direction the valve allows free flow through a check valve.

Due to pressure compensation, the flow rate is independent of the pressure drop. This ensures, for example, that a cylinder moves at a constant speed regardless of the load.

Technical data

  • Maximum pressure: 250 bar
  • Maximum regulated flow:
    • 1/4" BSP: 17 l/min
    • 3/8" BSP: 17 l/min
    • 1/2" BSP: 28 l/min
  • Maximum flow through the check valve
    • 1/4" BSP: 25 l/min
    • 3/8" BSP: 30 l/min
    • 1/2" BSP: 45 l/min
  • Working connections: 1/4" BSP to 1/2" BSP
Size

V0581/C

Low stock: 3 left

€79,00 EUR
€79,00 EUR
Sale Sold out
Taxes included. Shipping calculated at checkout.
