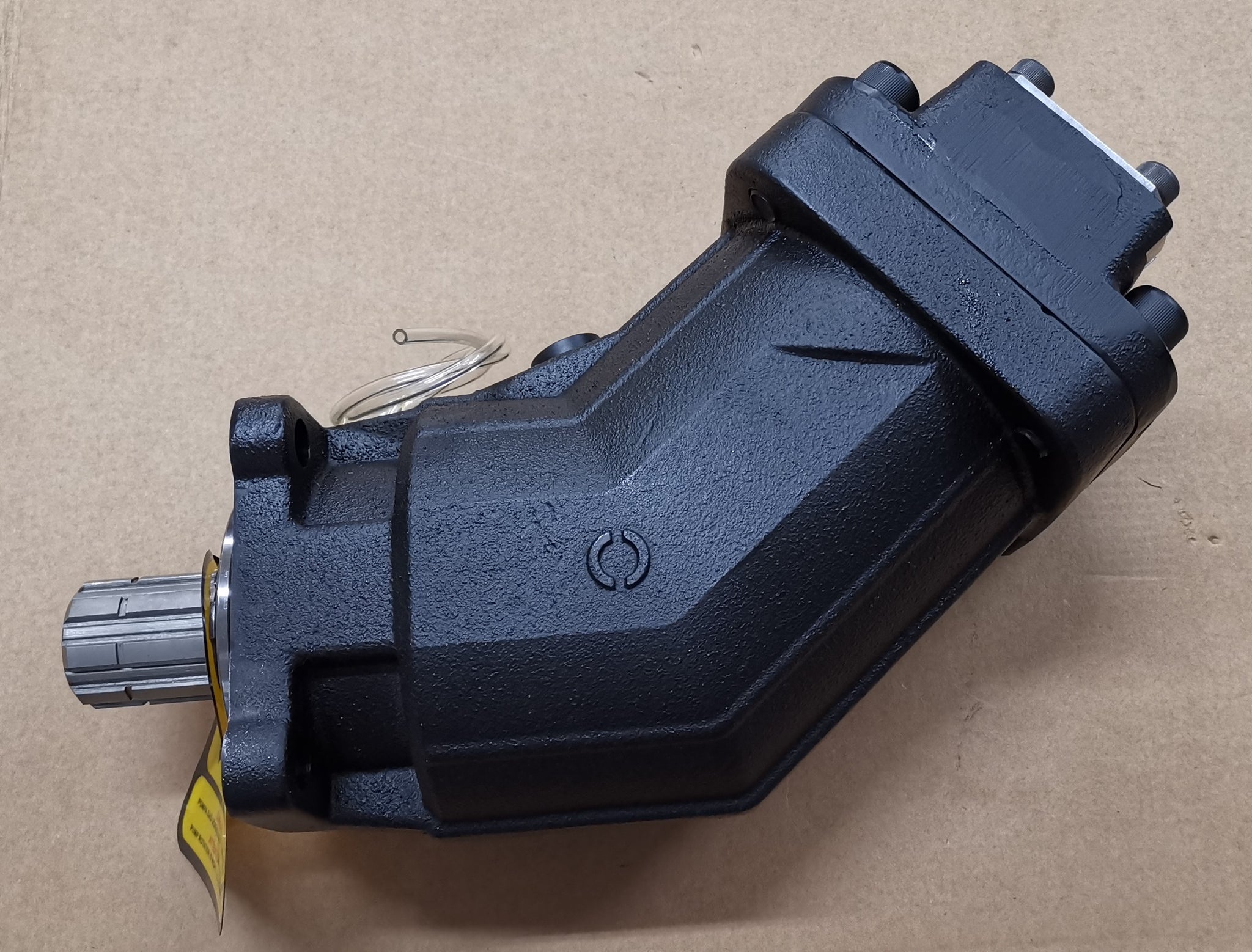

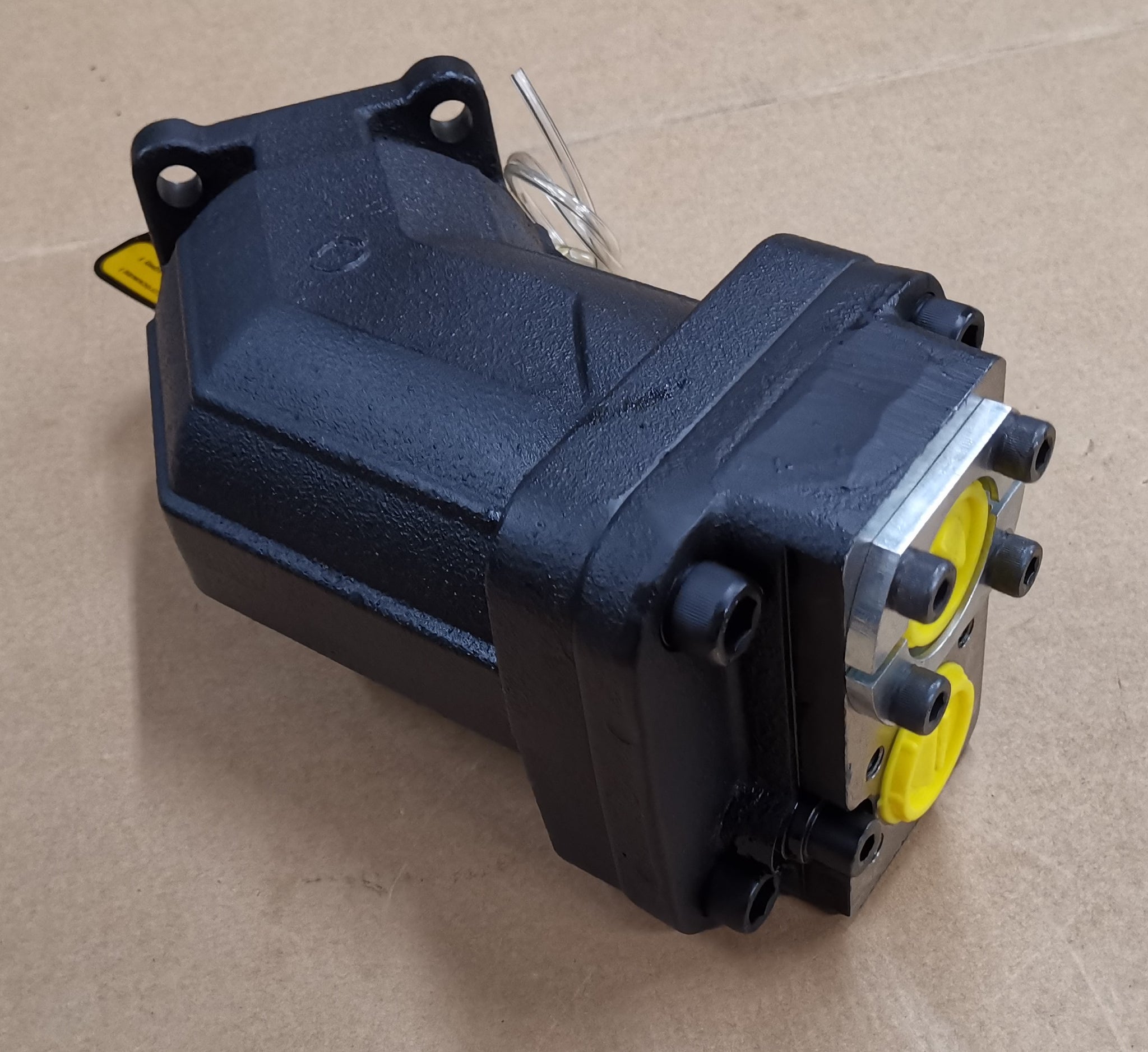

Inclined axis fixed displacement axial piston pump
New axial piston pumps from the Trale brand are offered here.
| Type | suction side | Print page | operating pressure | Maximum pressure | Torque | Maximum speed | Displacement volume |
| BPT12 | 3/4" | 3/4" | 350 bar | 400 bar | 71 Nm | 2300 rpm | 12 cm³/rev |
| BPT18 | 3/4" | 3/4" | 350 bar | 400 bar | 105 Nm | 2300 rpm | 18 cm³/rev |
| BPT25 | 3/4" | 3/4" | 350 bar | 400 bar | 146 Nm | 2300 rpm | 25 cm³/rev |
| BPT32 | 3/4" | 3/4" | 350 bar | 400 bar | 190 Nm | 2250 rpm | 32 cm³/rev |
| BPT40 | 3/4" | 3/4" | 350 bar | 400 bar | 240 Nm | 1900 rpm | 40 cm³/rev |
| BPT50 | 3/4" | 3/4" | 350 bar | 400 bar | 292 Nm | 1900 rpm | 50 cm³/rev |
| BPT63 | 3/4" | 3/4" | 350 bar | 400 bar | 360 Nm | 1900 rpm | 63 cm³/rev |
| BPT80 | 1" | 1" | 350 bar | 400 bar | 460 Nm | 1700 rpm | 80 cm³/rev |
| BPT108 | 1" | 1" | 350 bar | 400 bar | 620 Nm | 1700 rpm | 108 cm³/rev |
| BPT130 | 1" | 1" | 350 bar | 400 bar | 746 Nm | 1600 rpm | 130 cm³/rev |
