Walvoil DLM122/2 load-sensing front-loader control valve

Professional Walvoil front loader control valves are offered here.

This control valve is a professional solution.
Both sections are double-acting, and one section also has a detented float position. Hardened and coated spools ensure good durability and wear resistance.

Check valves in each section also ensure that the sections cannot influence each other.

The control valve is designed for use in load-sensing systems.

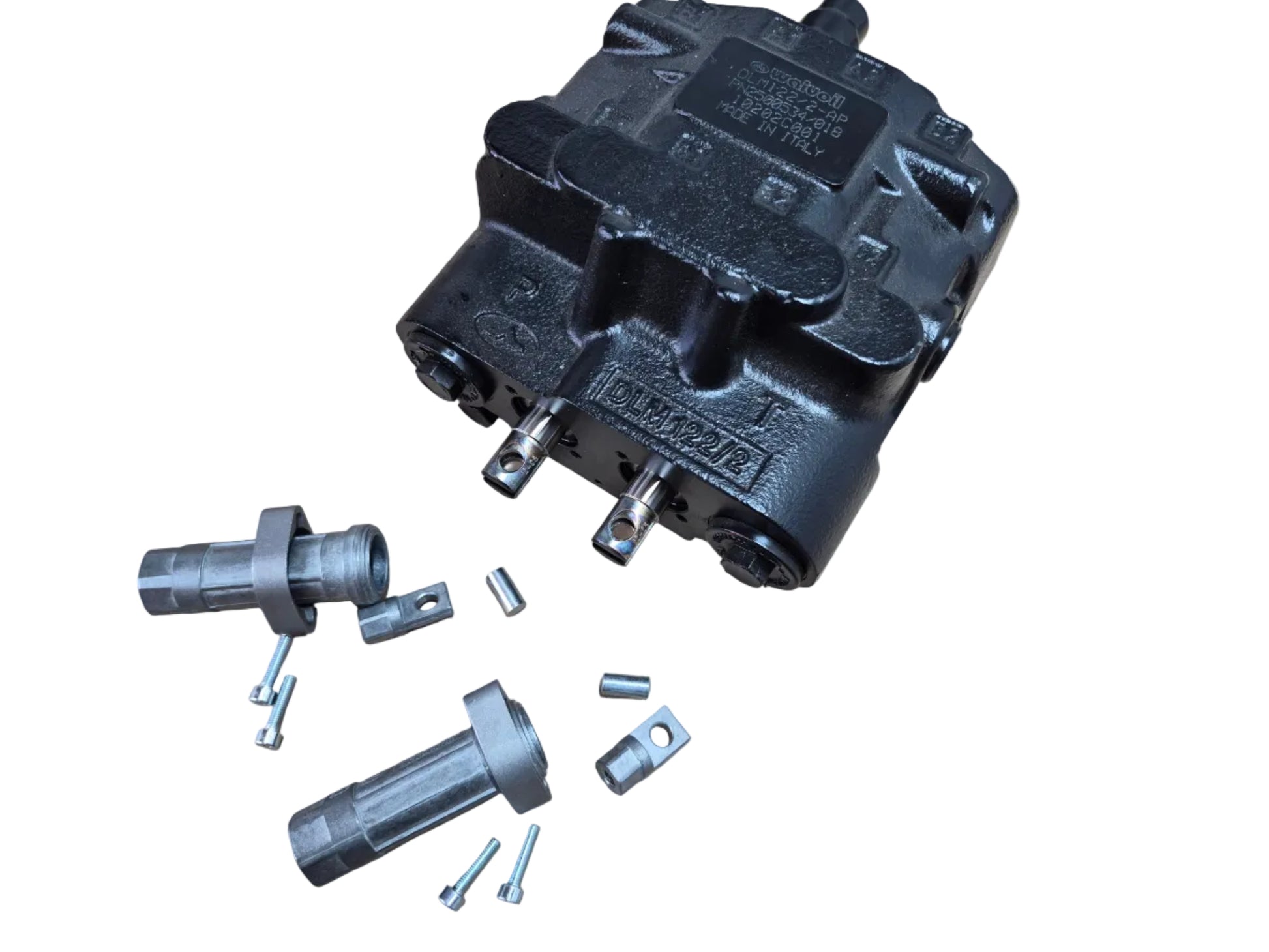

Optionally, we can supply the valve including connection bells for Bowden cables.

Technical data
Nominal flow rate: 80 l/min
Max. pressure: 250 bar
Max. return pressure: 10 bar

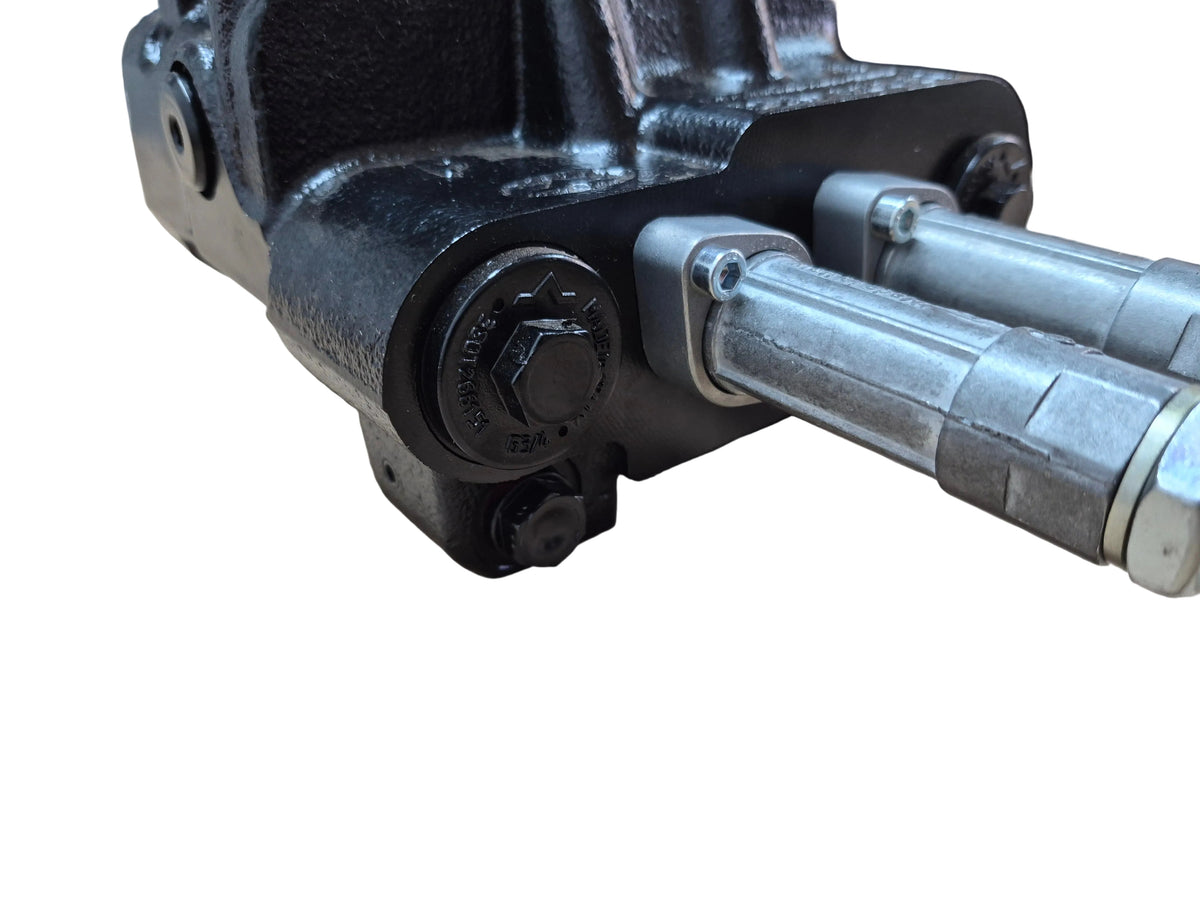

Connections: N, A, B= 1/2" BSP; P, T=3/4" BSP; LS= 1/4" BSP
Oil temperature range:-20 to 80°C
without pressure relief valve (not required)

Section 1:
- Double-acting with float position (detented)

Section 2:
- Double-acting

You can find a suitable 6/2-way valve for equipping the third control circuit in our webshop.
