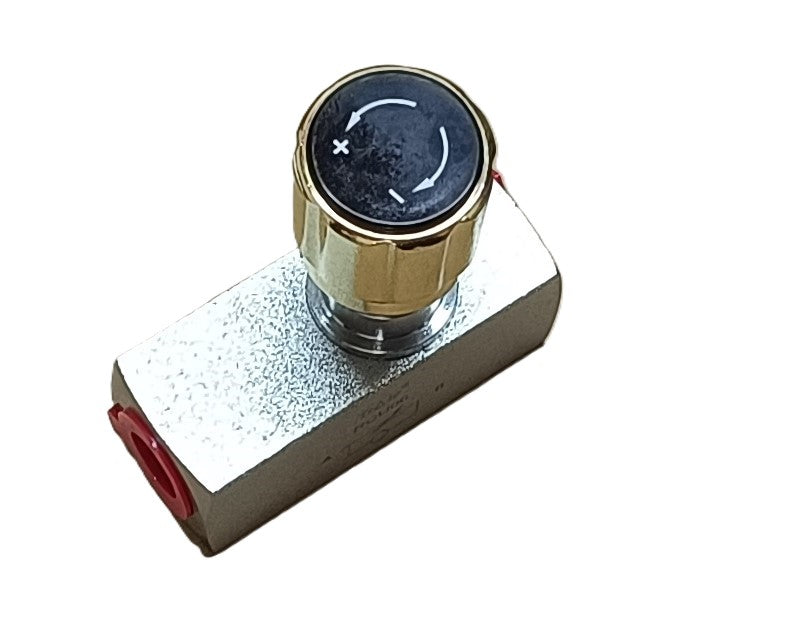

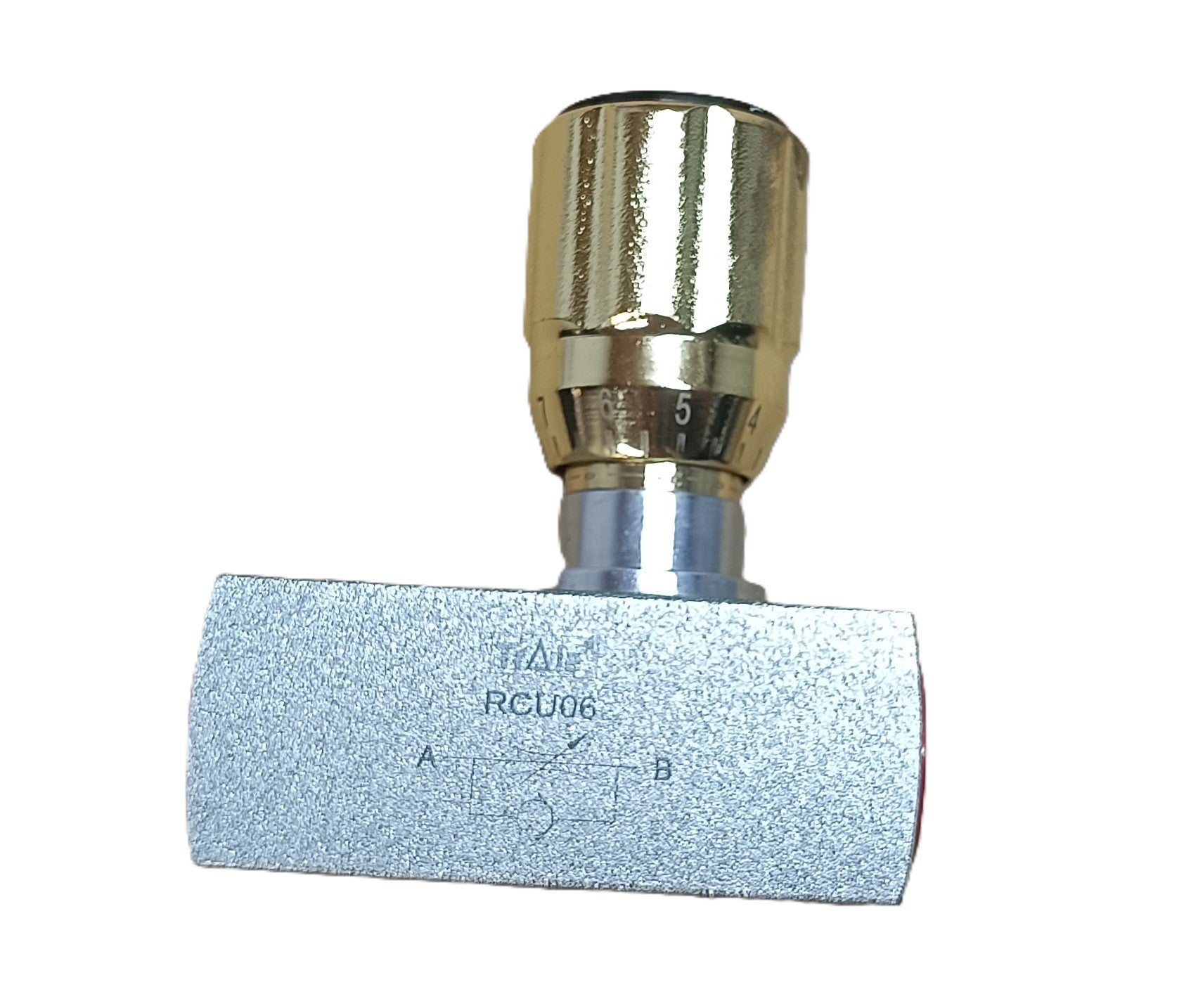

Throttle check valve, various sizes up to 200 l/min

Adjustable throttle check valves for hydraulic applications are offered here.
The controller is adjusted using the handwheel on the top.

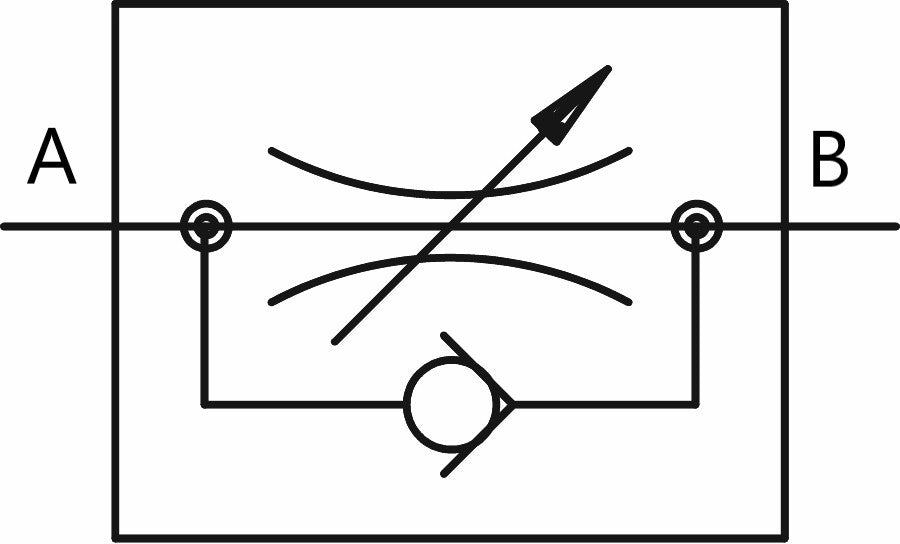

In one flow direction the oil volume flow is throttled, in the other direction the valve allows free flow via a check valve.

Technical data:
Maximum pressure: 315 bar
Maximum flow rate: optionally from 40 l/min to 200 l/min
Working connections: optionally from 1/4" BSP to 1" BSP
